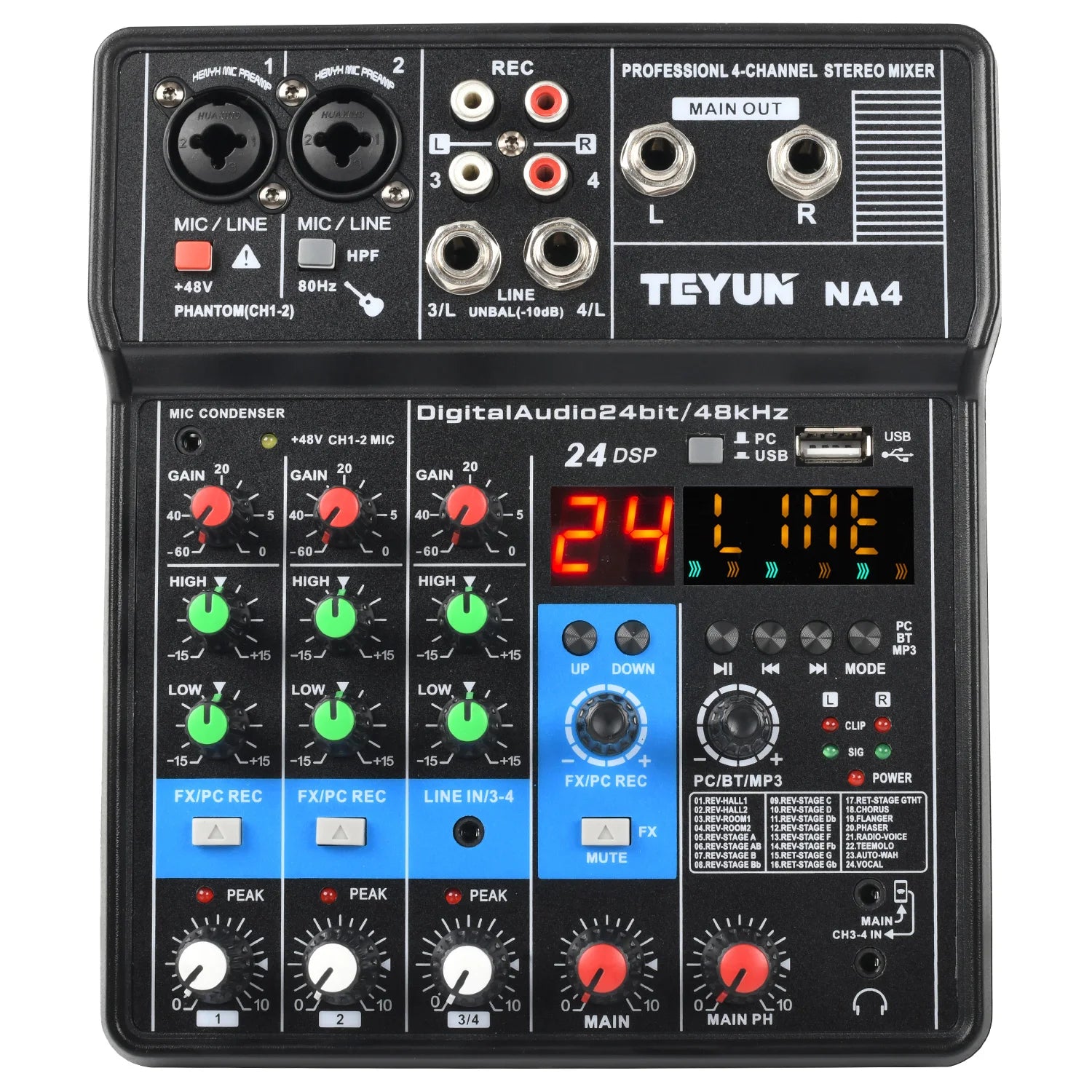

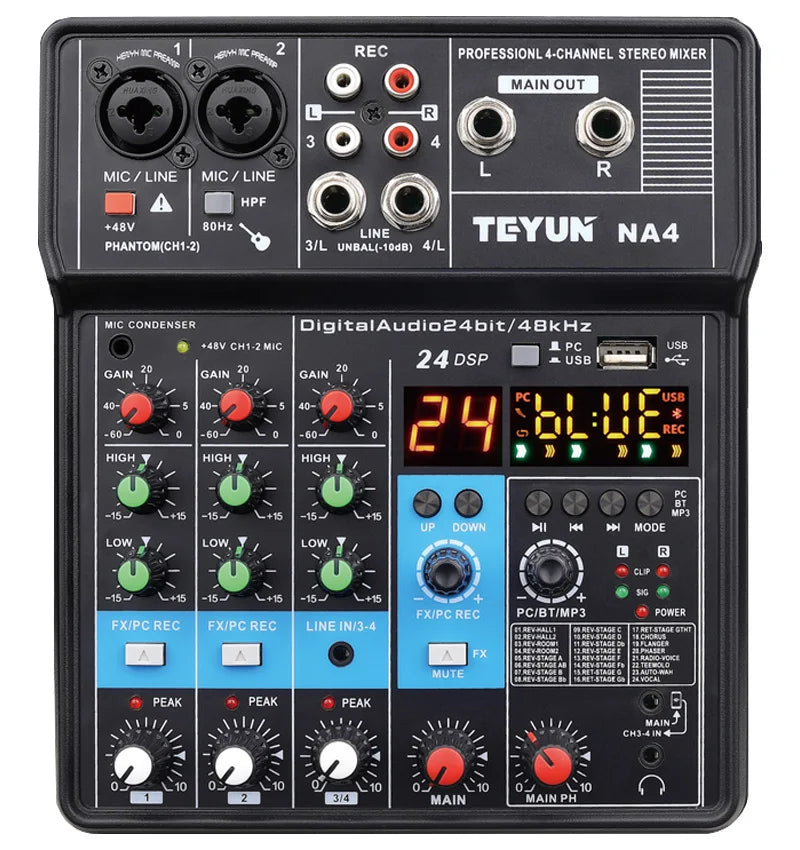

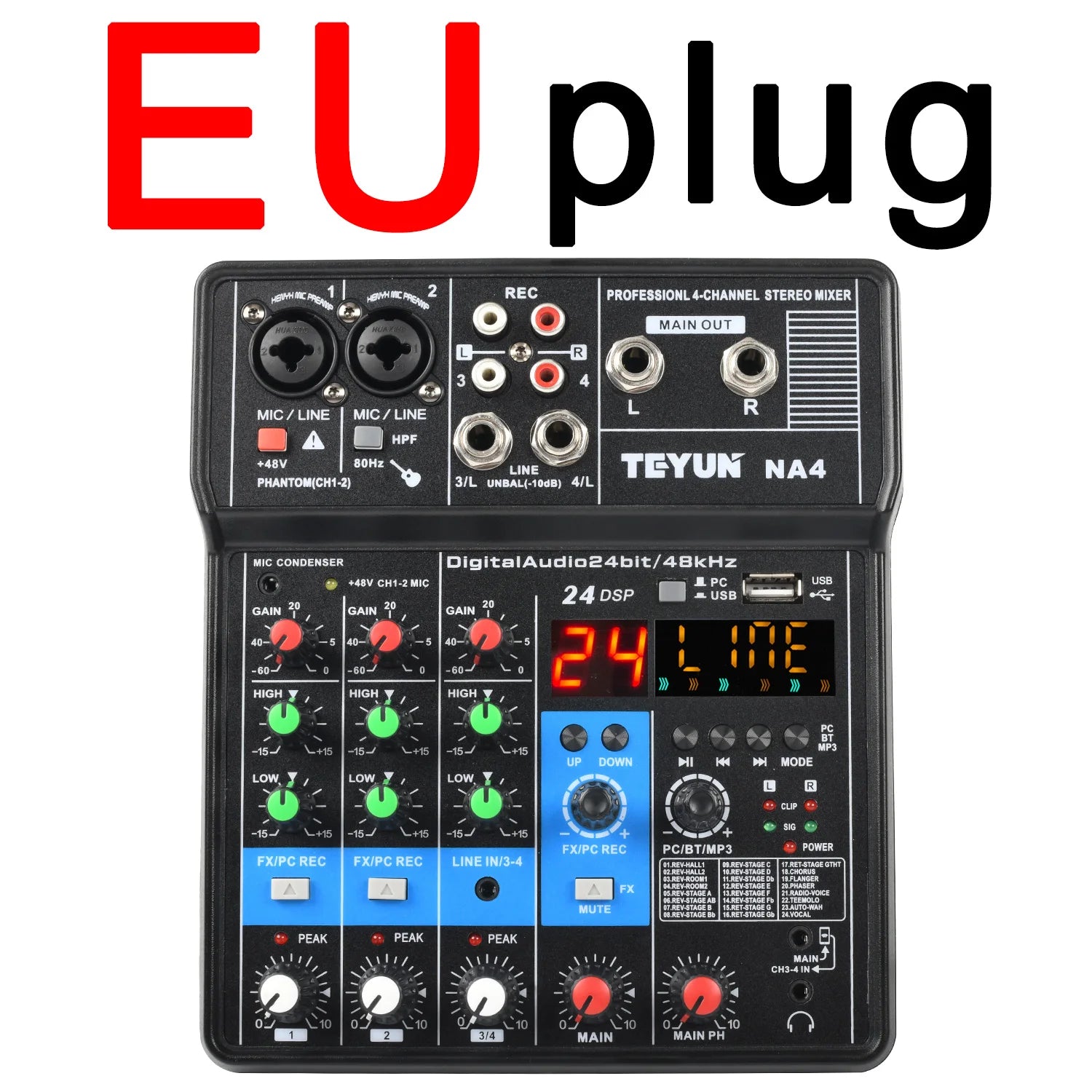

TEYUN 4 Channel Mixing Console 48V Bluetooth Sound Table 24 DSP Effects USB Computer Record Play Live Broadcast Audio Mixer NA4

Regular price: $37.99
Regular price: ~~$40.99~~
Sale price: $37.99

Tax included.

Color – EU Plug

Ships From spain france Poland Mexico CHINA Russian Federation

Product variants

SPECIFICATIONS

Brand Name: TEYUN

Origin: Mainland China

Certification: CE

Type: Mixers

Model Number: NA4

Channels:: 4 (2 MONO + 1 Stereo )

Phantom Power:: 48V DC

USB Function:: Play and Record

Effects:: 24 DSP Effects

Computer Function:: Playback

Connect to Bluetooth:: Yes

Application:: Broadcast, Podcast

NA4

Mini Portable Mixing Console 4 Channels Broadcast Podcast Bluetooth Soundcard USB Play Record Computer Playback Audio Mixer NA4

NA4 Selling Point

1. 4 Channels ( 2 mono +1 stereo)
2. USB power supply: 5V DC
3. Bluetooth
4. Computer playback, soundcard function: Connect to Computer Via USB Cable
5. Mobile Broadcast podcast function
6. USB Play and Record
7. 24DSP Effects

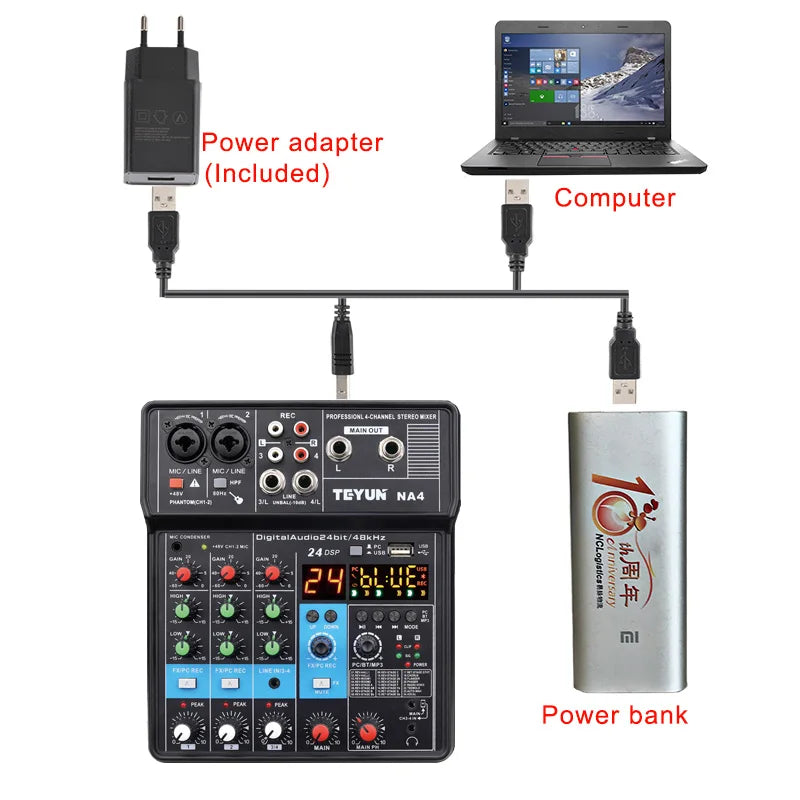

1.Power Supply

1) Working Power: 5V DC

A) Power adapter
B) Computer supply power
C) Power bank supply power

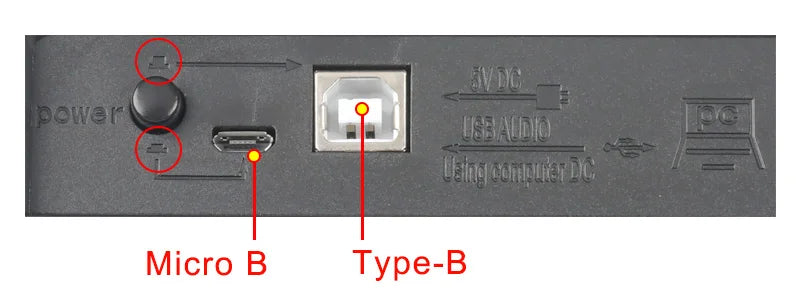

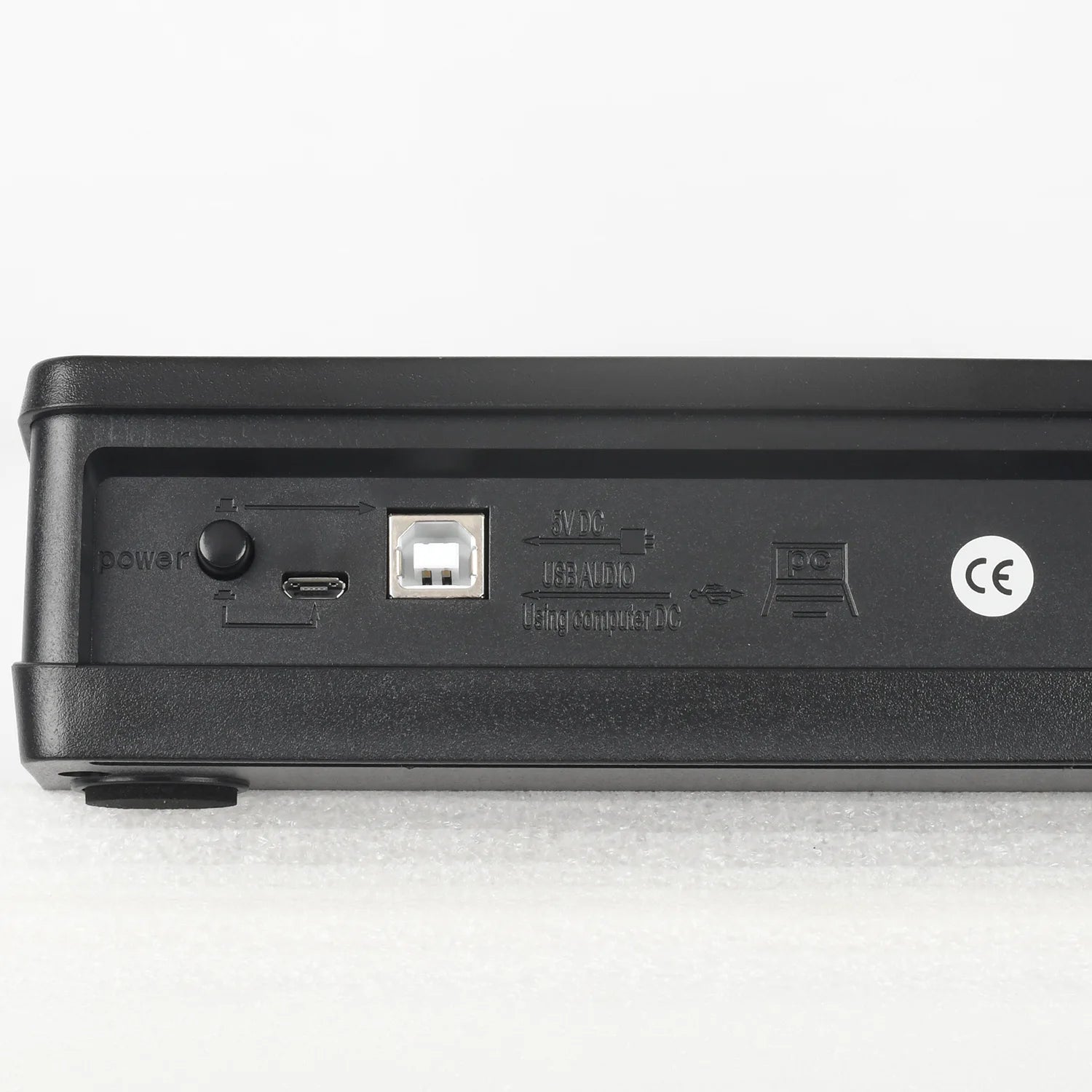

2) Power Supply Interfaces
A) Micro B: Press down the button to choose Micro B interface
B) Type-B: Bounce up the button to choose Type-B interface

Please Note:

Micro B Interface: Only for power supply
Type-B Interface: Power supply + Data transmission

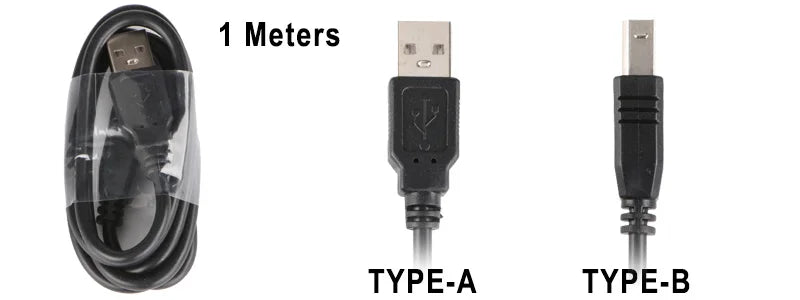

3) USB Cable:1 Meter (3.3 in)

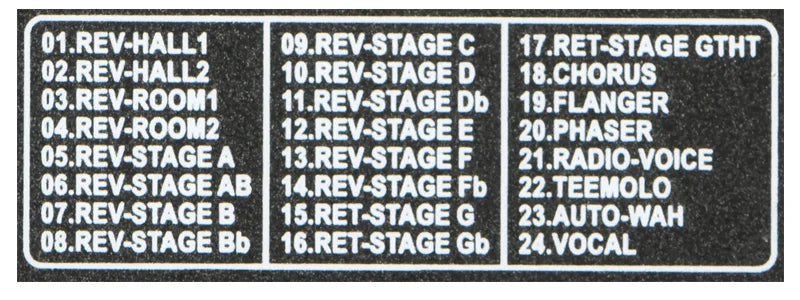

2.Effect

Please Note:

The 24th effect is vocal. It is no orignal voice, there is no effect

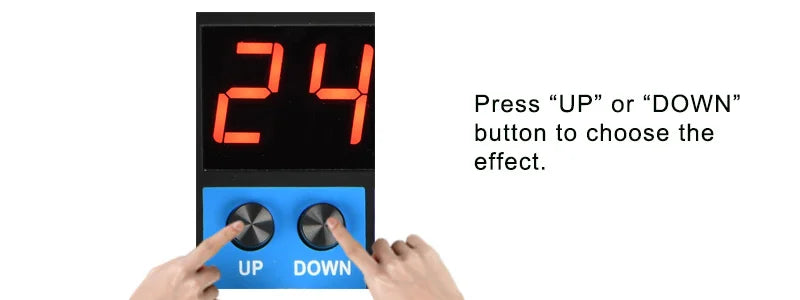

Choose the Effect

1) Press UP/DOWN button to choose the effect

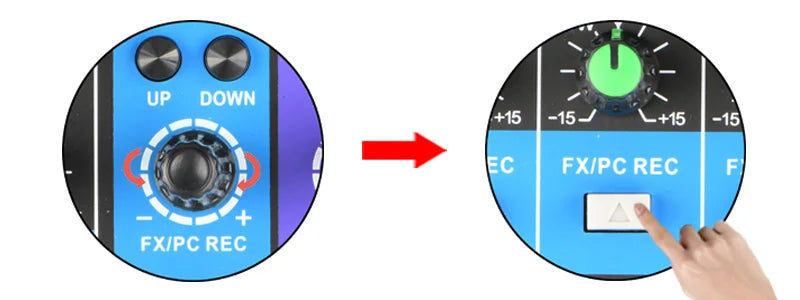

Adjustment of Effect

1) Adjust the effect volume output to channel:
Rotate the "FX/PC REC" knob to increase or reduce the effect volume
2) Press down the "FX/PC REC" button to allow the effect input to channel
Bounce up the "FX/PC REC" button to cancel the effect input to channel

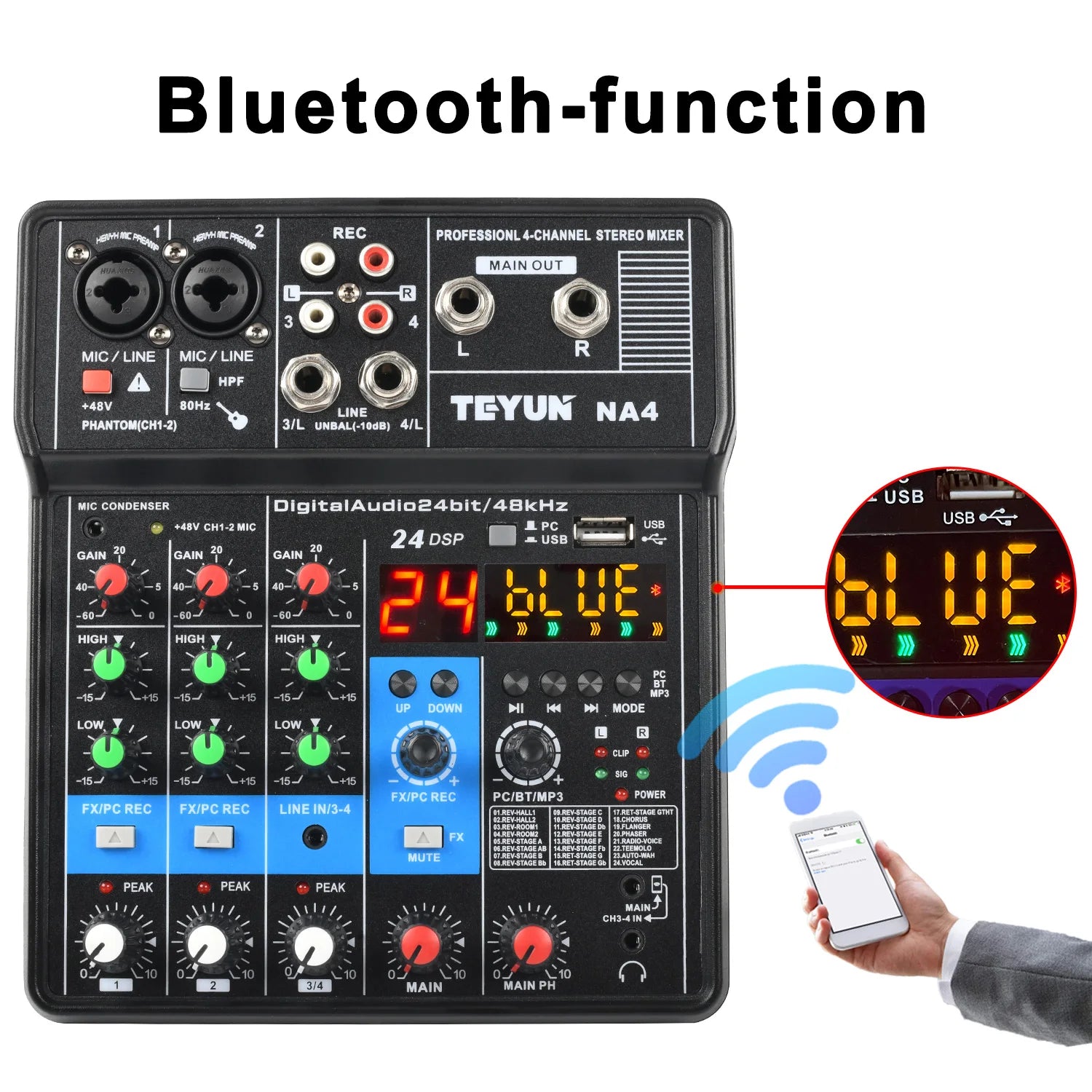

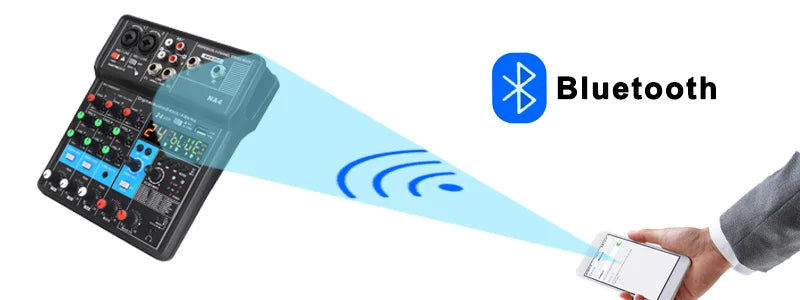

3.Bluetooth

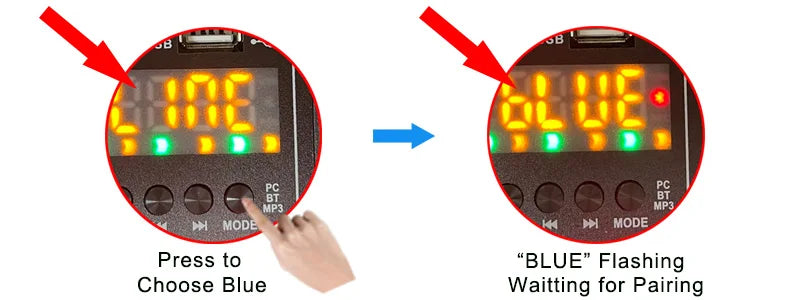

1) Waiting for Pairing:

Press MODE to "BLUE", "BLUE" is flashing, and waiting for the pairing

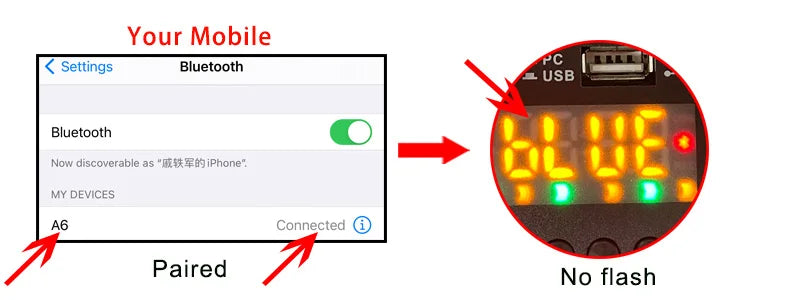

2) Bluetooth Connect:

A) Open your mobile bluetooth
B) Choose "A6"
C) Connected

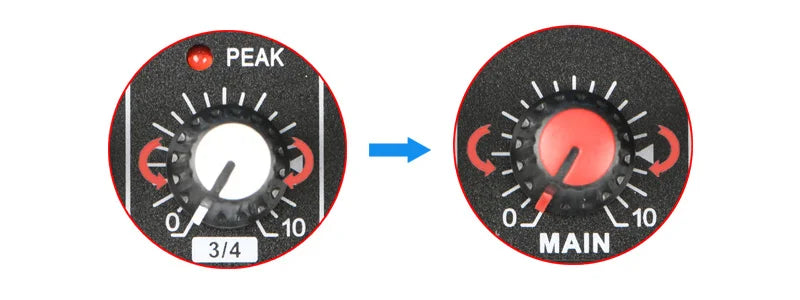

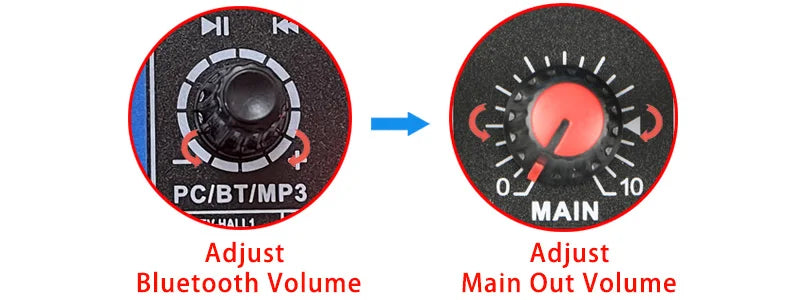

3) Bluetooth Volume Control:

A) Rotate the PC/BT/MP3 knob to increase or reduce the bluetooth volume

B) Rotate the MAIN knob to increase or reduce the main out volume

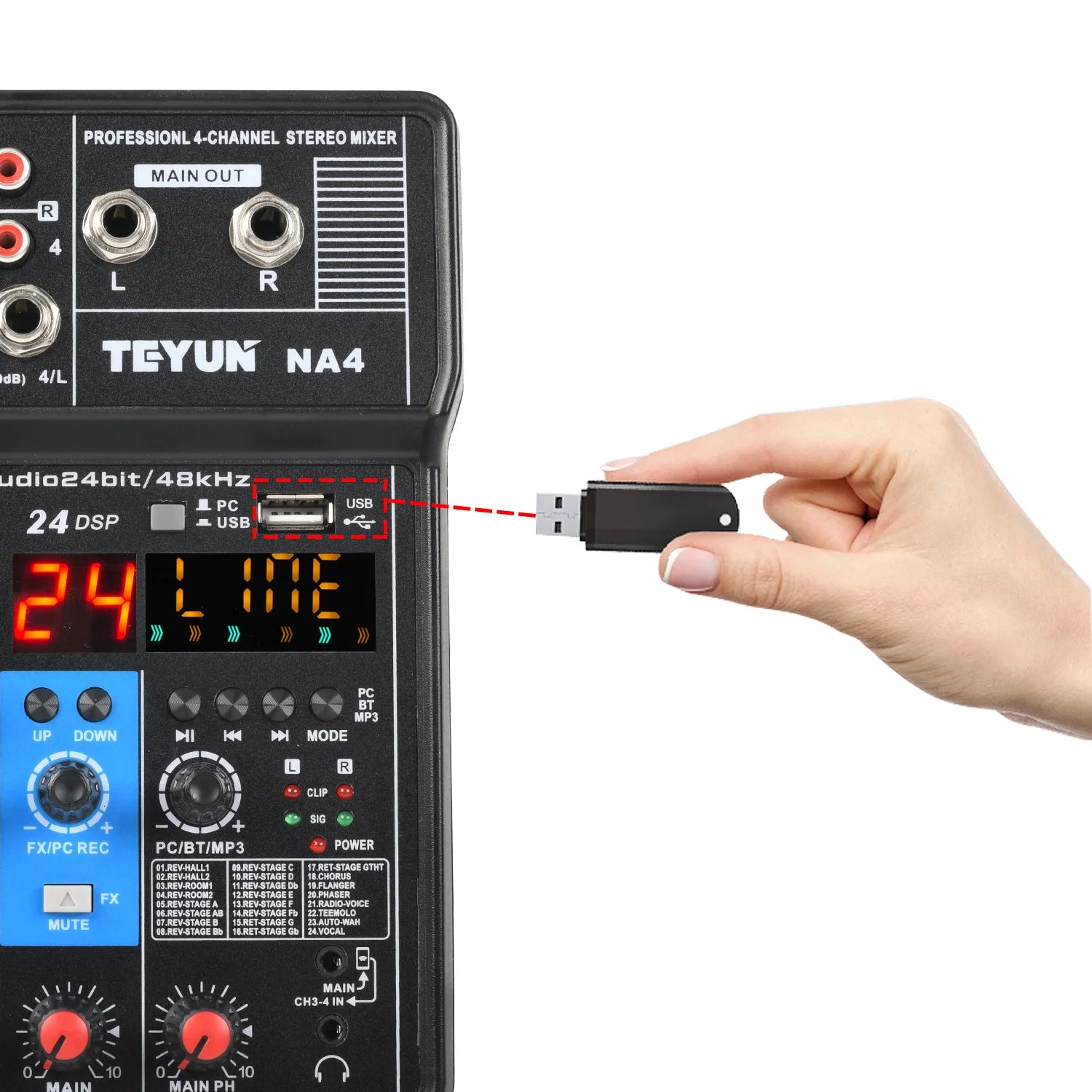

4.USB Play:

1) USB Play Format:MP3, WAV,WMA,FLAC

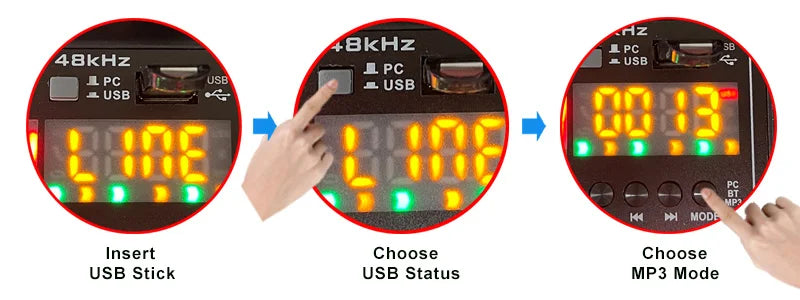

2) USB Play
A) Insert usb stick
B) Press to choose "USB"
C) Press MODE to choose "USB"

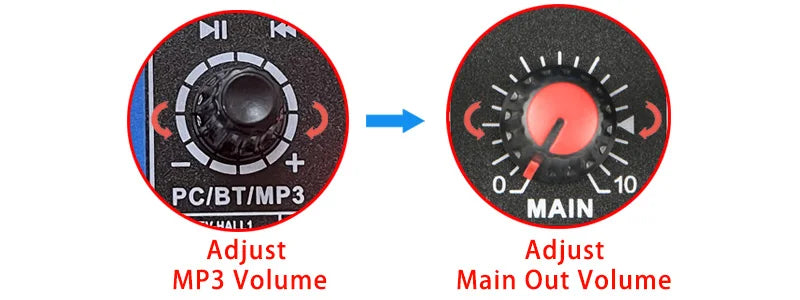

3) MP3 Volume Control:
A) Rotate the PC/BT/MP3 knob to increase or reduce the USB volume
B) Rotate the MAIN knob to increase or reduce the main out volume

5.USB Recording

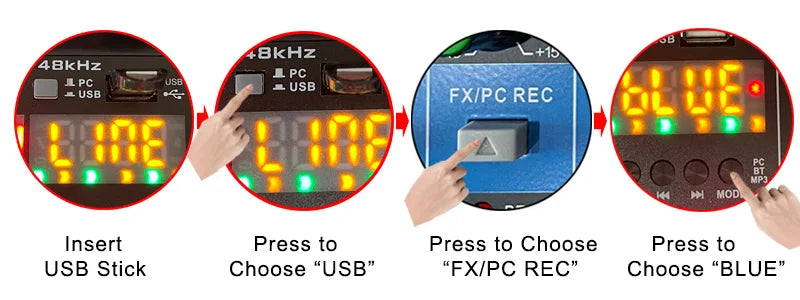

1) Prepare for The Record:

A) Insert USB stick
B) Press the button to USB status
C) Press down channel "FX/PC REC" button
D) Press MODE to choose "Blue" status

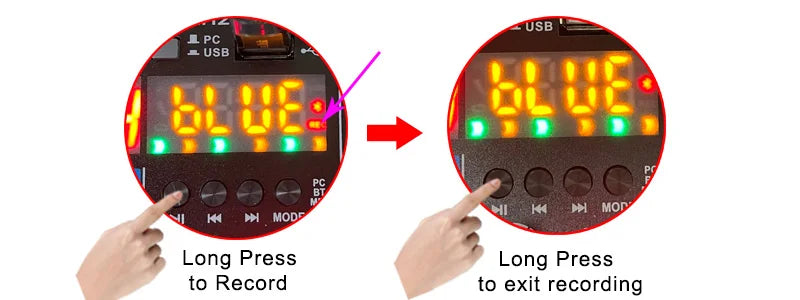

2) USB Record:

A) Long press "PLAY/PAUSE" to record, there will be a "REC" mark when you are recording
B) Long press "PLAY/PAUSE" to end the record

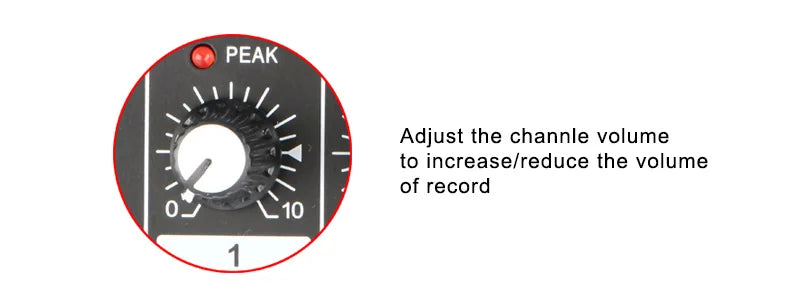

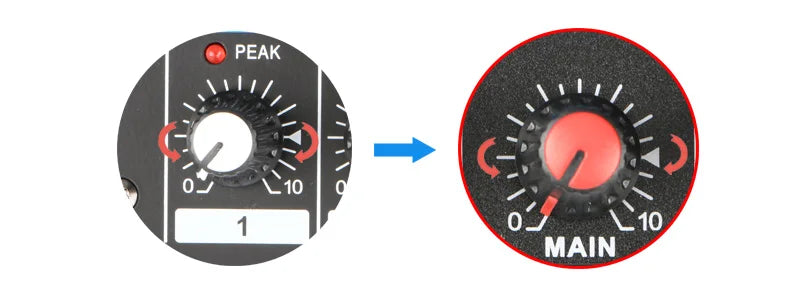

3) Adjustment of Recording Volume:

Adjust the input channel volume to increase or reduce the record volume

4) Turn Off the Effects：

If you do not need effect, please press "FX MUTE" button to MUTE the effect
After you press down the mute button, the effect will go to 24. it is no effect

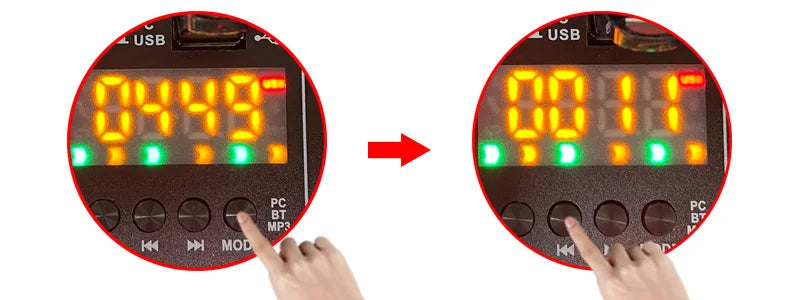

5) Play the Record File:

A) Press MODE to USB status
B) Press Pre-button to the last song. it is the record file.then it will play automatically

6. Soundcard ( computer playback)

Connect to the Computer

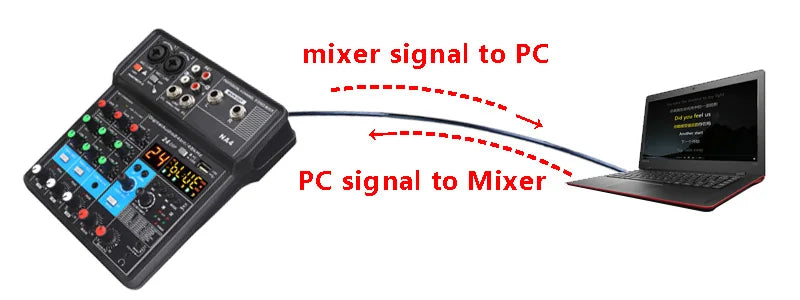

1) Soundcard Function of the Mixer:

A) This model had soundcard function
B) You can connect audio mixer to computer via USB cable
C) When connected, audio mixer signal can be transmitted to computer, computer signal can be transmitted to audio mixer

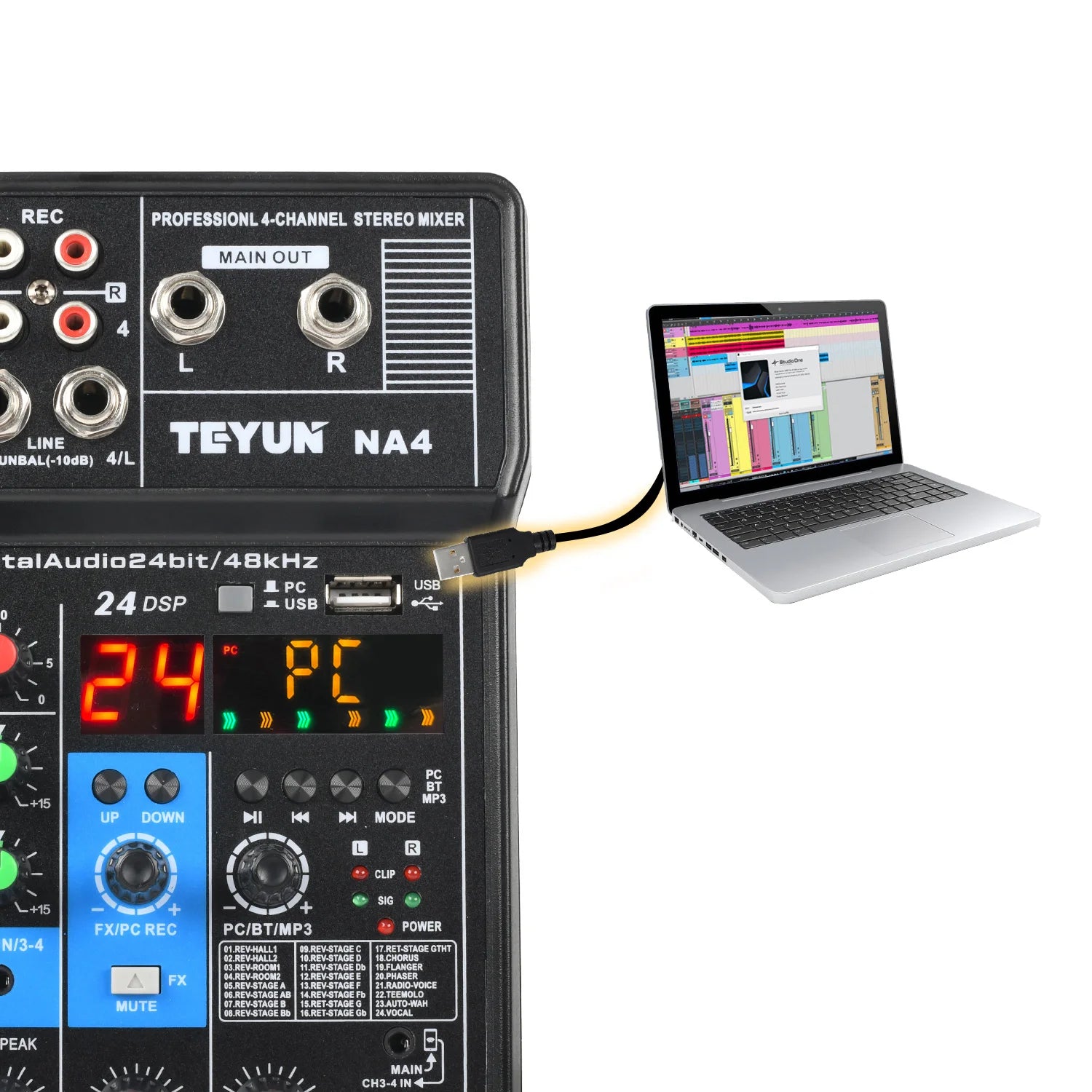

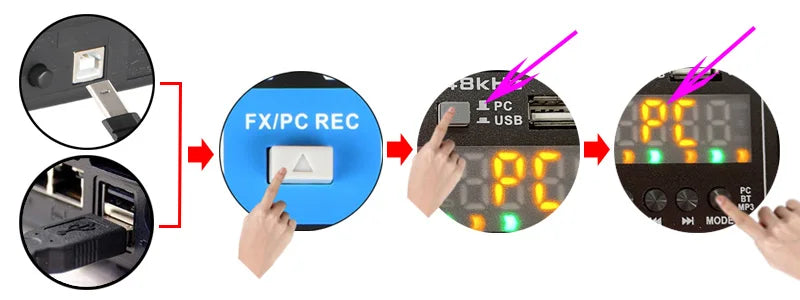

2) Connect Audio Mixer to Computer:

A) Connect audio mixer to computer via the USB cable
B) Press down the FX/PC REC button of the channel
C) Bounce up the button to choose PC status
D) Press the MODE to choose PC status

3) Play Music from Computer

A) Open music play program of computer, and play music
B) Rotate the PC/BT/MP3 knob to increase or reduce the volume from computer to audio mixer
C) Rotate the MAIN knob to increase or reduce the volume to Main out

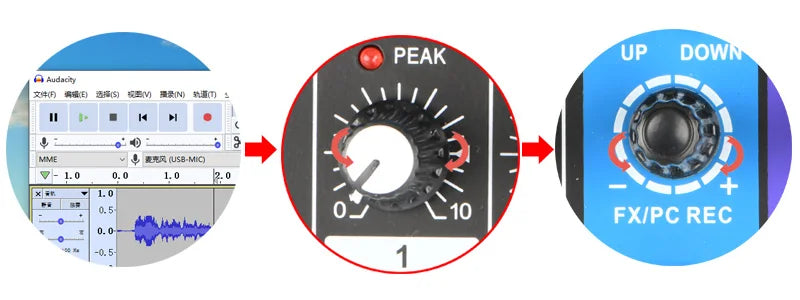

4) Record from Computer

A) Open your computer record program
B) Choose audio mixer as the microphone and speaker
C) Rotate the channel volume knob and FX/PC REC knob to adjust the volume of the record

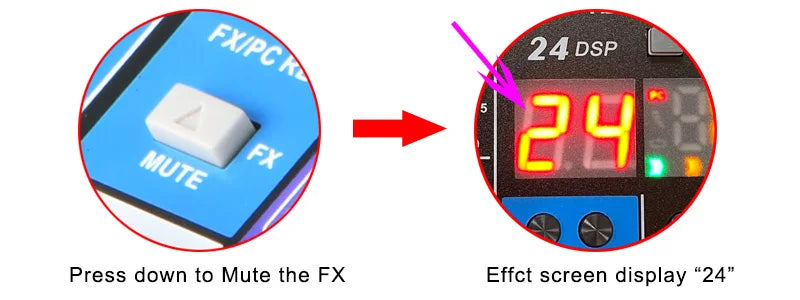

5) Turn Off the Effects:

If you do not need effect, please press "FX MUTE" button to MUTE the effect
After you press down the mute button, the effect will go to 24. it is no effect

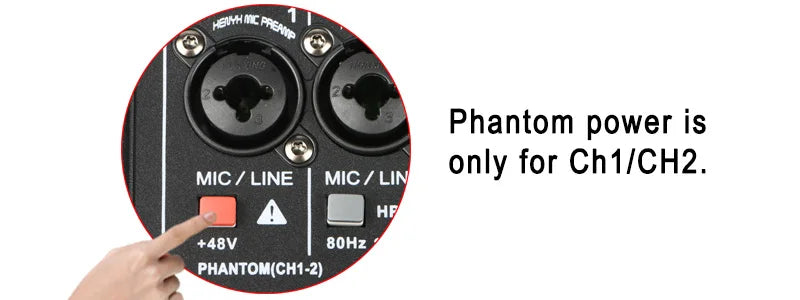

7. +48V Phantom Power:

1) For this model, there is only one +48V phantom power switch
2) +48V Phantom power is only for XLR, not for 6.3
3) The phantom is only for CH1 and CH2 XLR socket
4) When you turn on the +48V phantom power, CH1 and CH2 XLR input sockets will supply the +48V phantom power

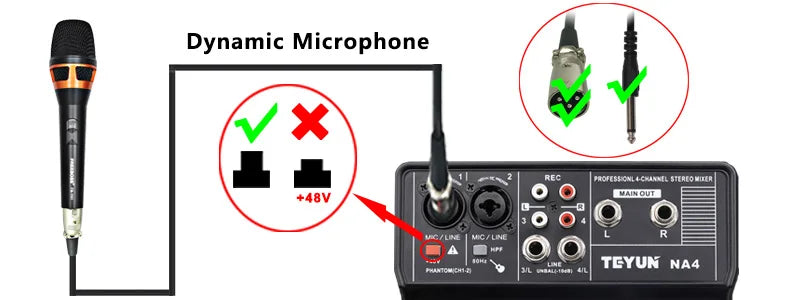

Dynamic Microphone and +48V Phantom Power:

When you use dynamic microphone, please do not turn on the +48V phantom, otherwise the dynamic microphone will be burned

(Please use XLR plug,not a 6.3 plug,because use the 6.3 plug,the sound will be too small)

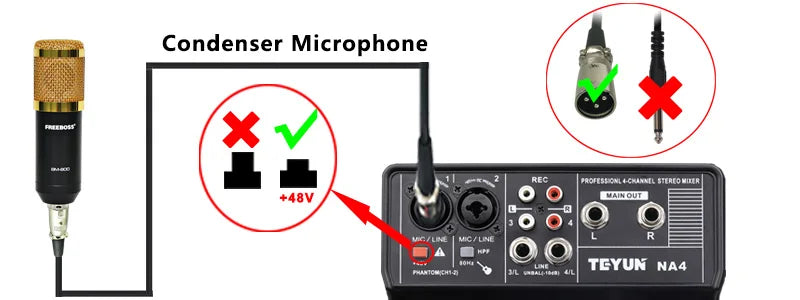

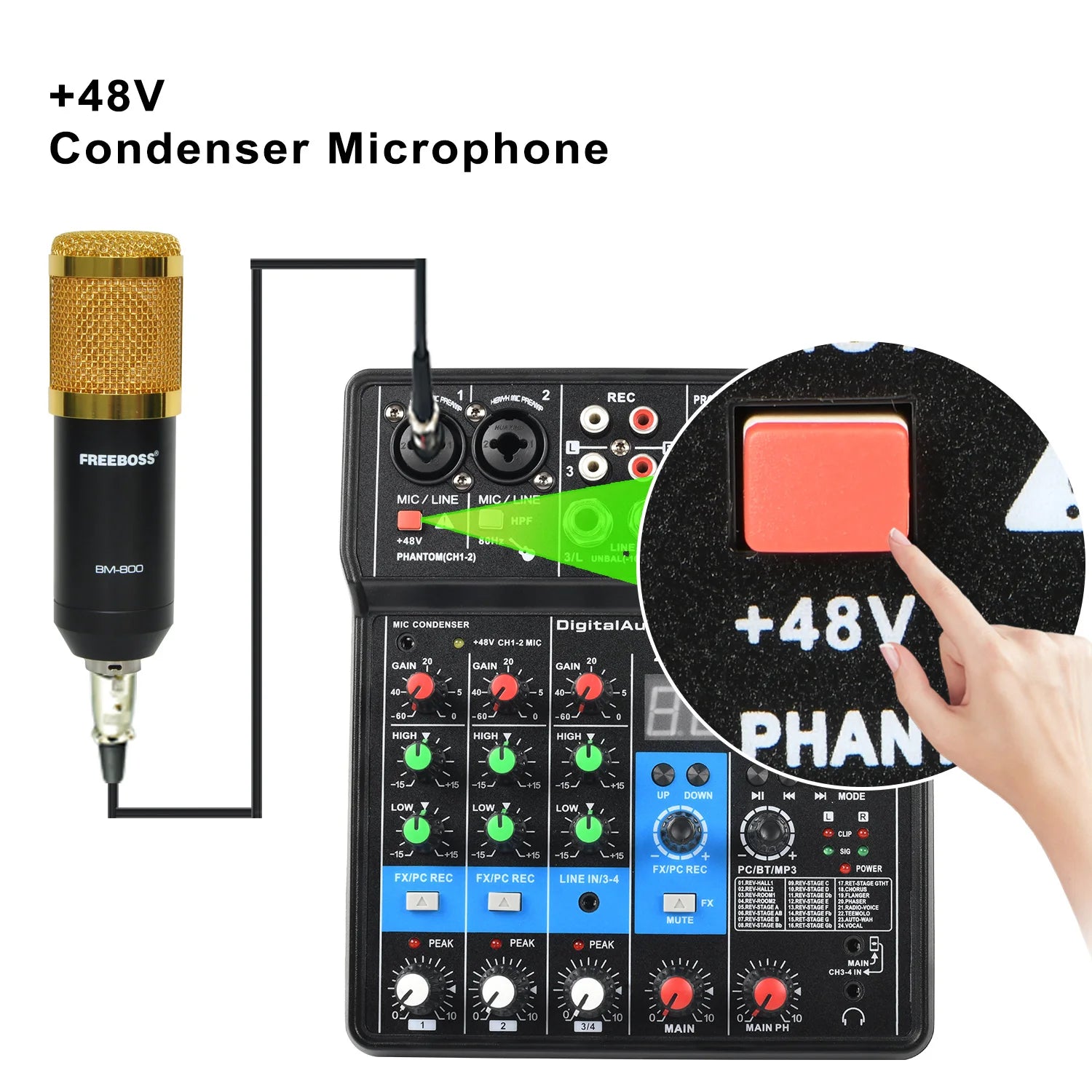

Condenser Microphone and +48V Phantom Power:

A) Please sure if your condenser microphone support +48V phantom power
(Note: Some condenser microphone does not support +48V phantom power)
B) Power on +48V phantom power to supply the power to condenser microphone

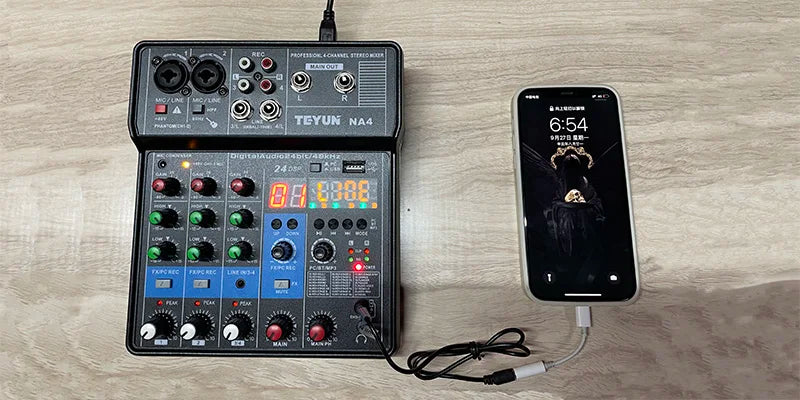

8. Mobile broadcast (podcast) function:

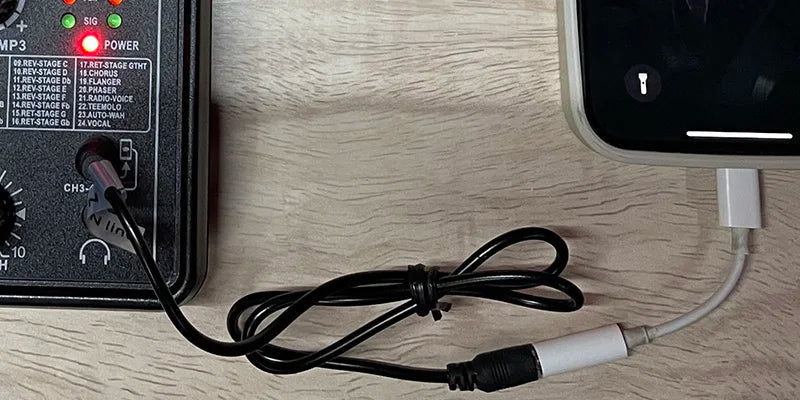

Connect audio mixer to mobile

1) You can connect mobile to audio mixer through TRRS socket
2) Audio mixer can transmit the signal to mobile------Such as mobile recording, live broadcast
3) Mobile can transmit the signal to audio mixer--- Such as music play
