Remark:
There are 2 versions here: "USB 2.0" and "USB 3.0", please purchase according to your needs.
We will send you the options to purchase.

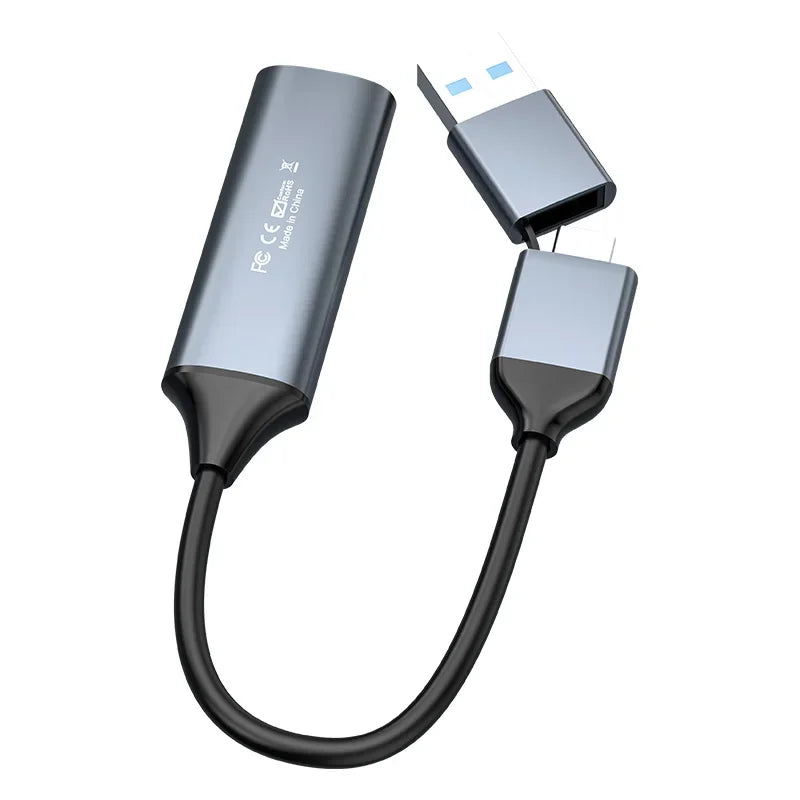

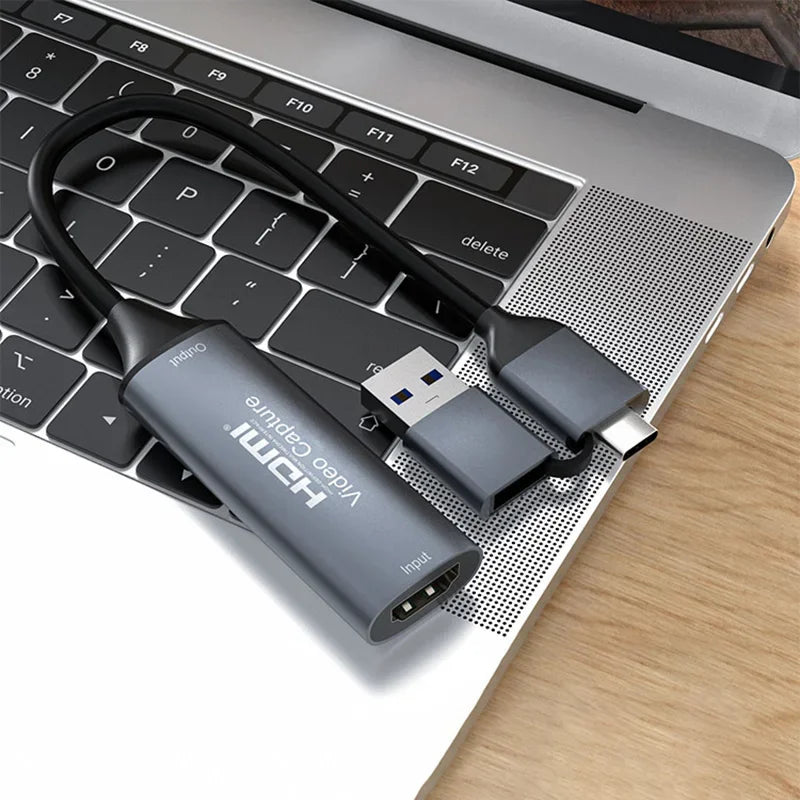

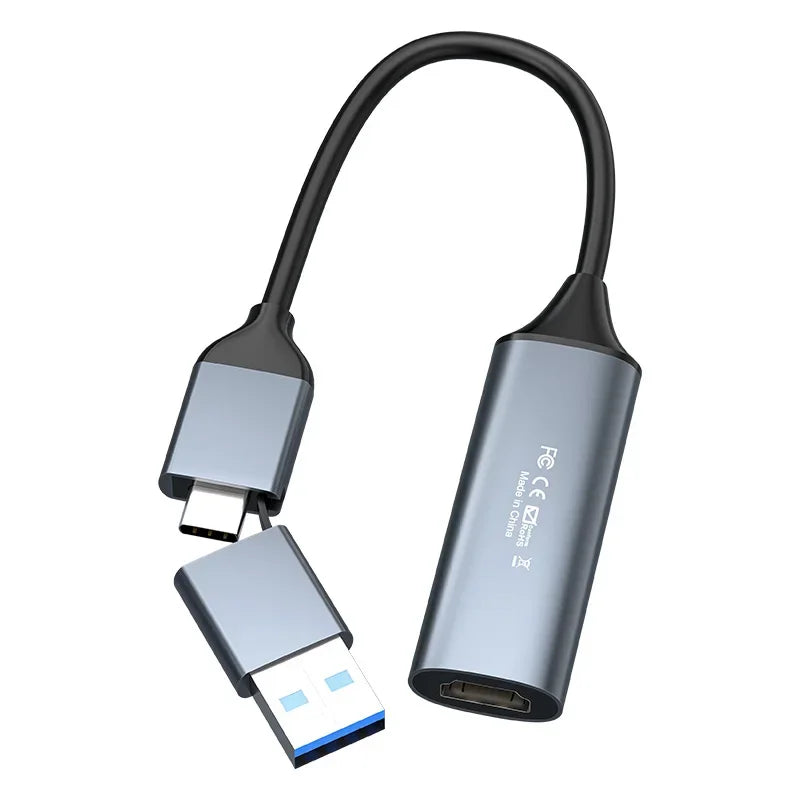

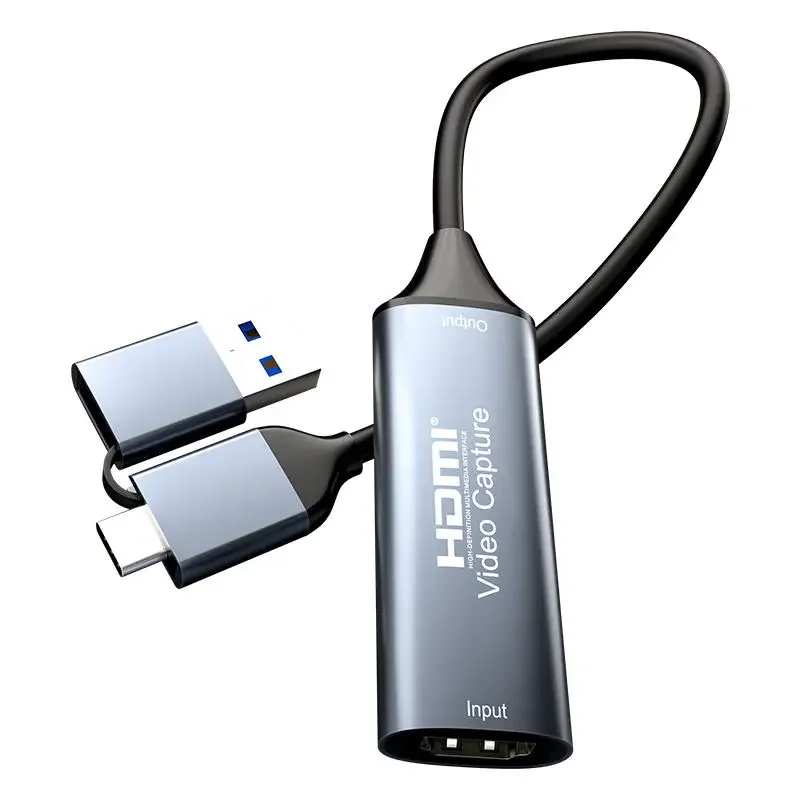

The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for previews and storage.
Suitable for high definition acquisition, teaching recording, medical imaging, etc.

Features:
* Support input max resolution 4K@30Hz;
* Support output max resolution 1080P@60Hz;
* USB2.0 Version Support 8/10/12bit deep color;
* USB3.0 Version Support 24/30/36bit deep color;
* Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);

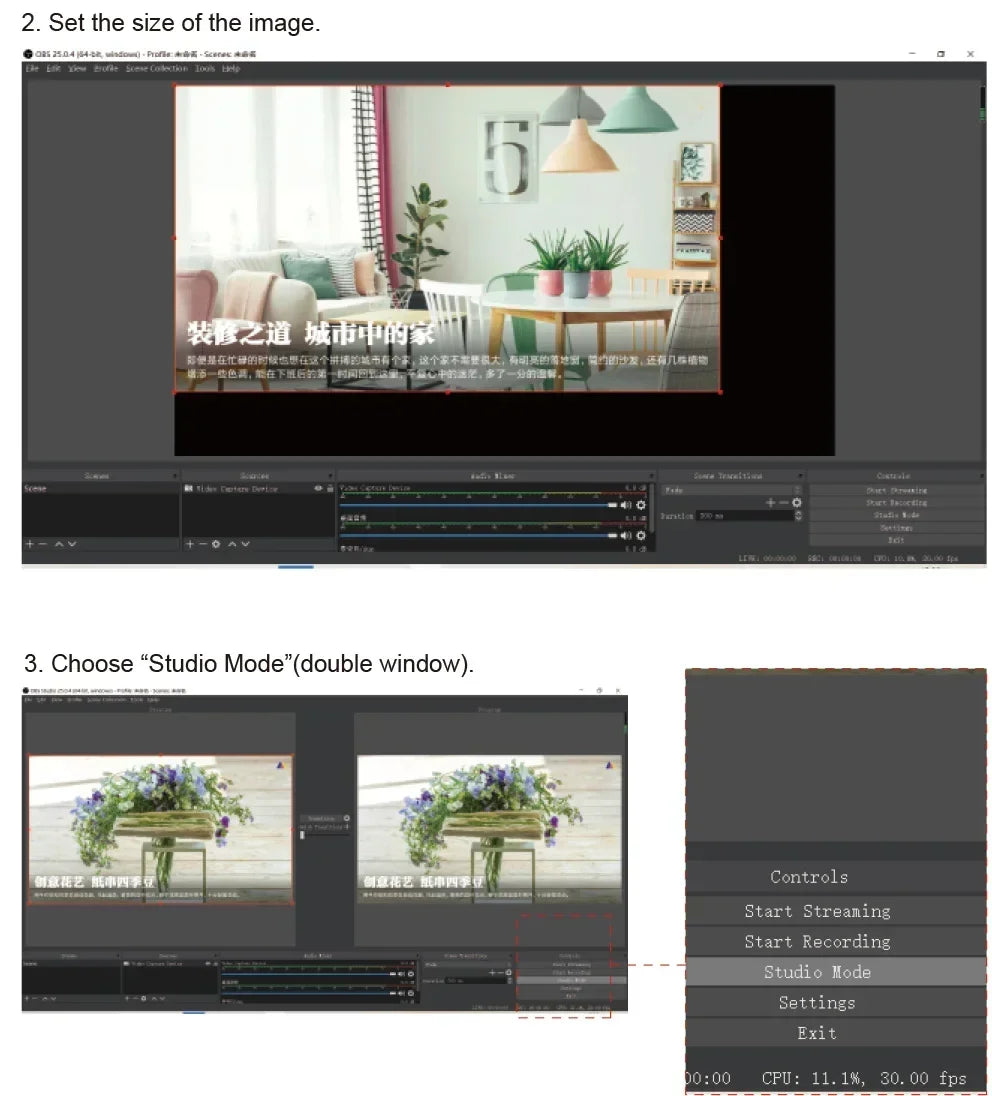

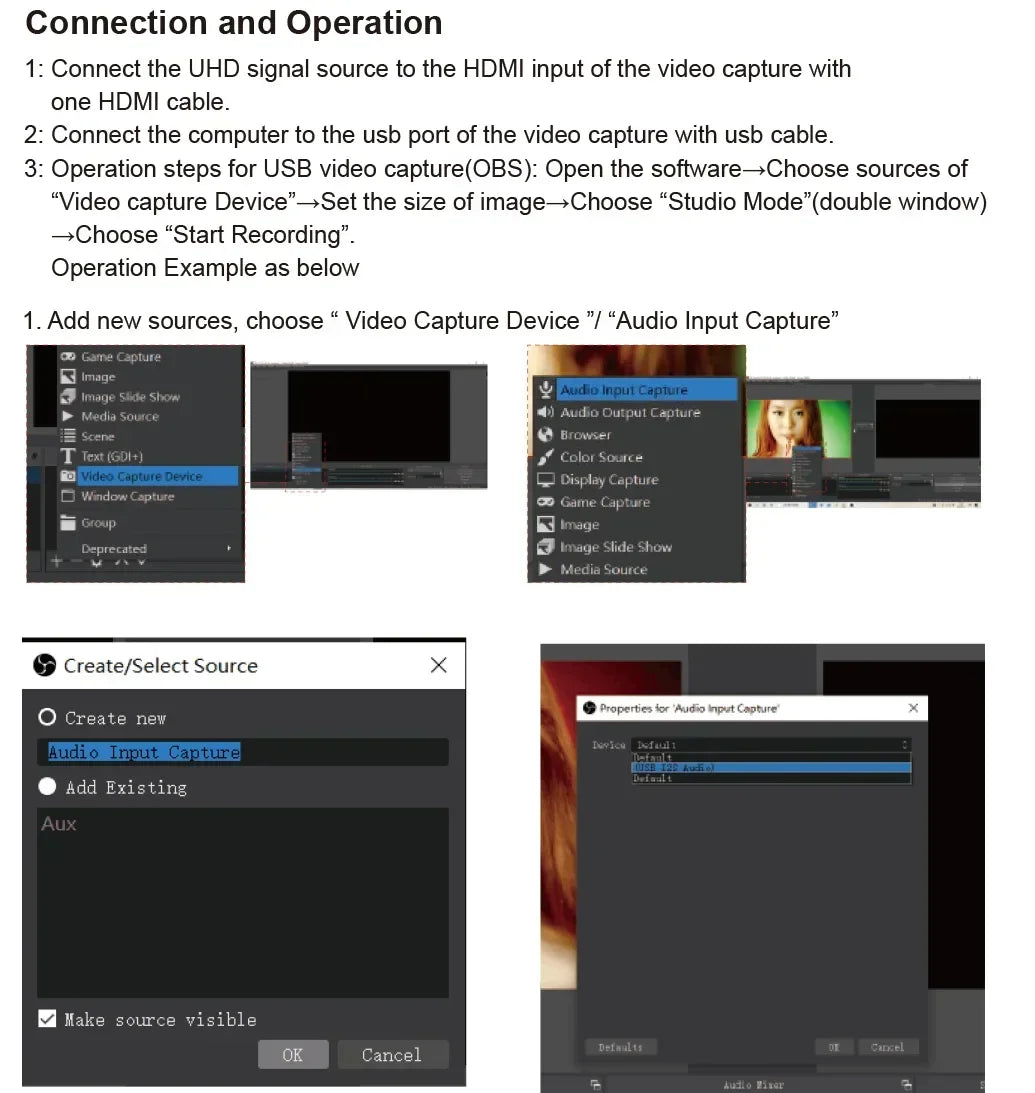

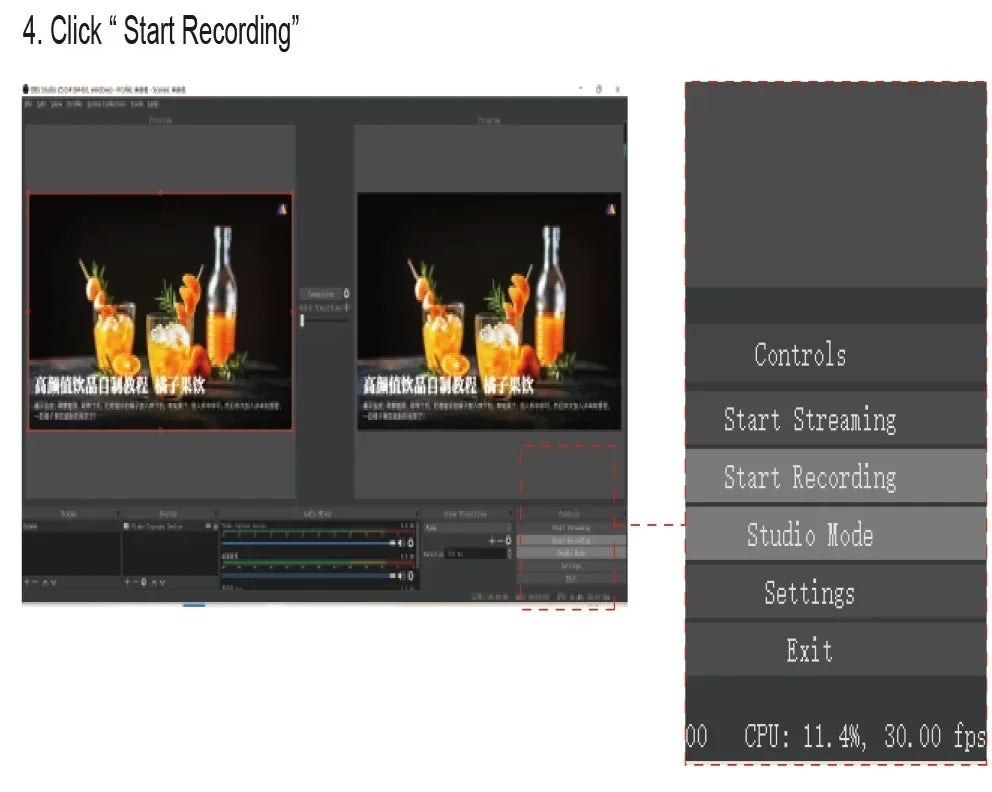

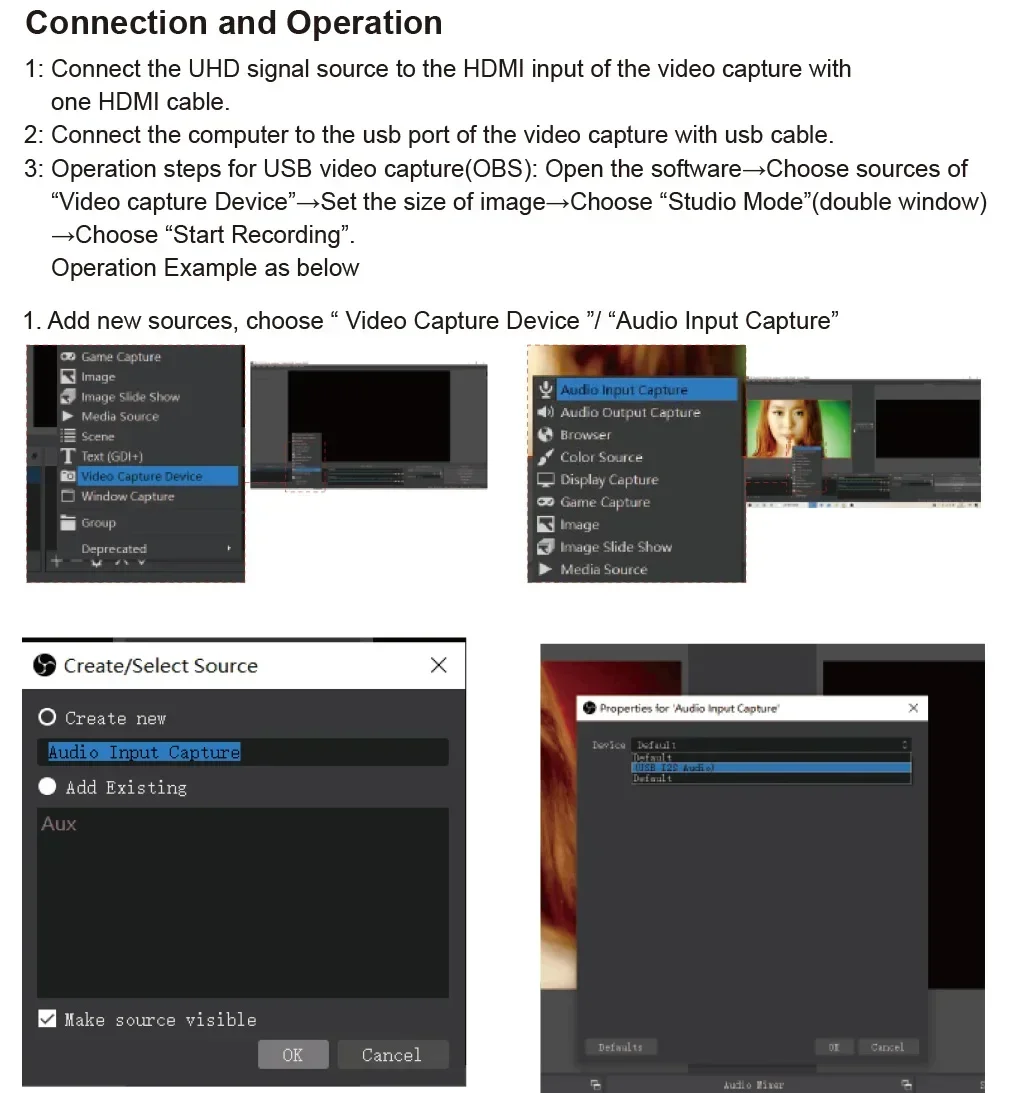

* Support most acquisition software, such as VLC,OBS ,Amcap, etc;
* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Support uncompressed(YUY2 1080P@60Hz) acquisition (USB3.0);

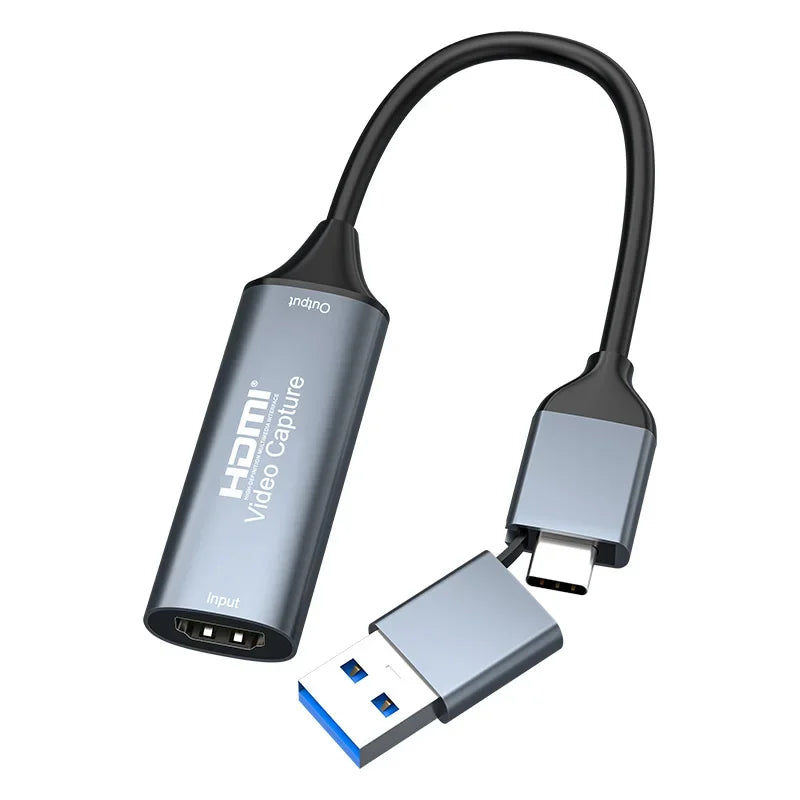

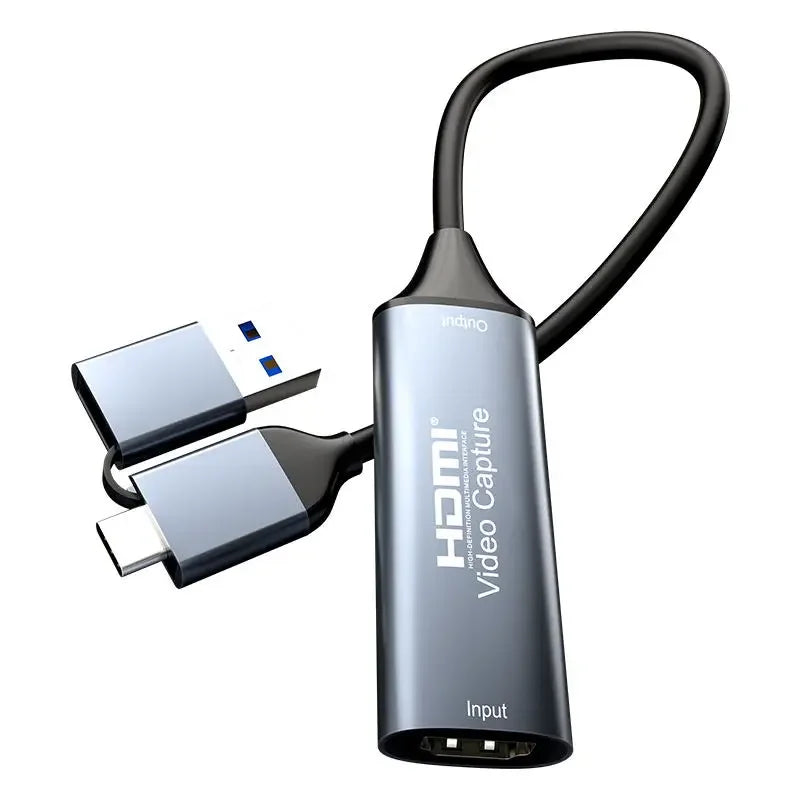

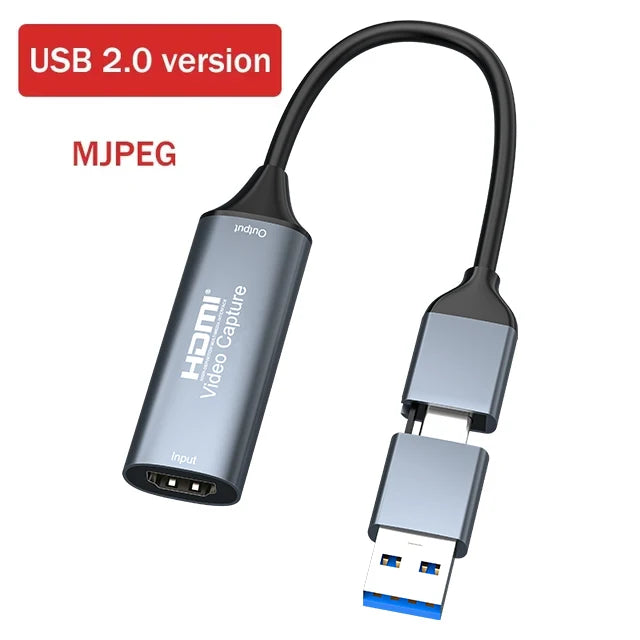

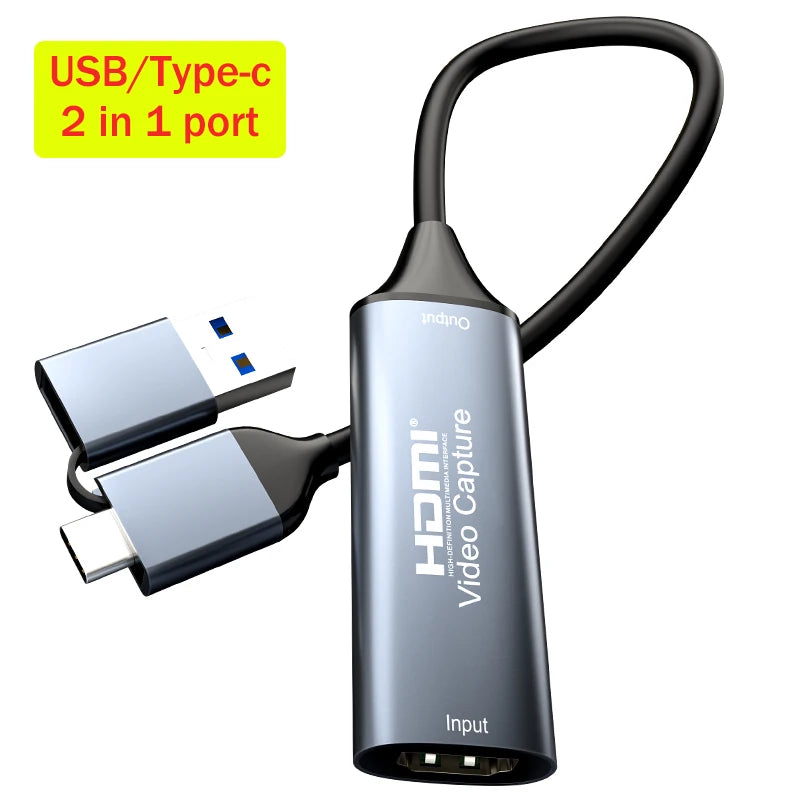

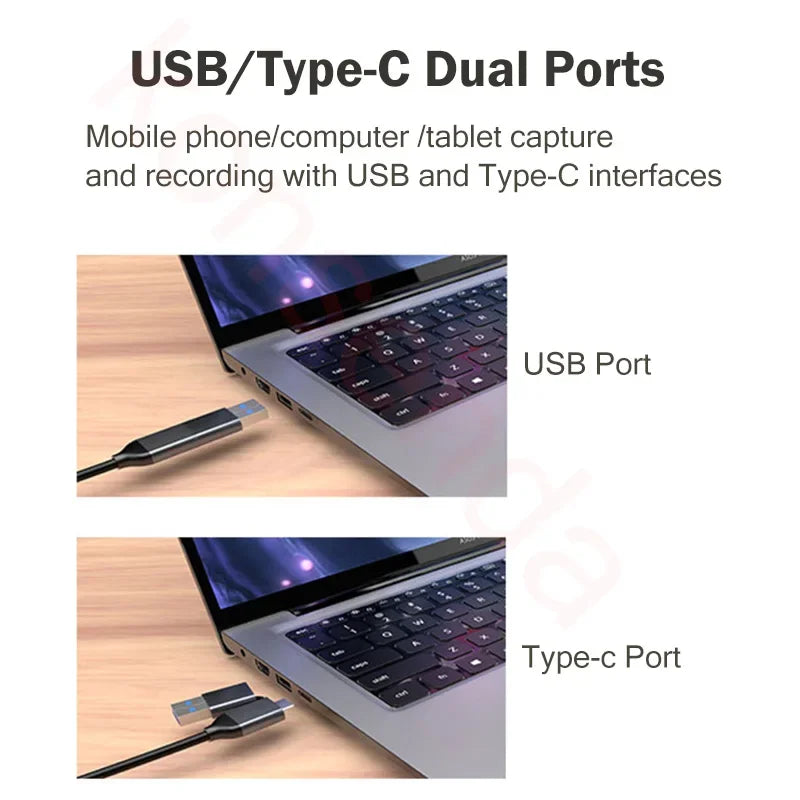

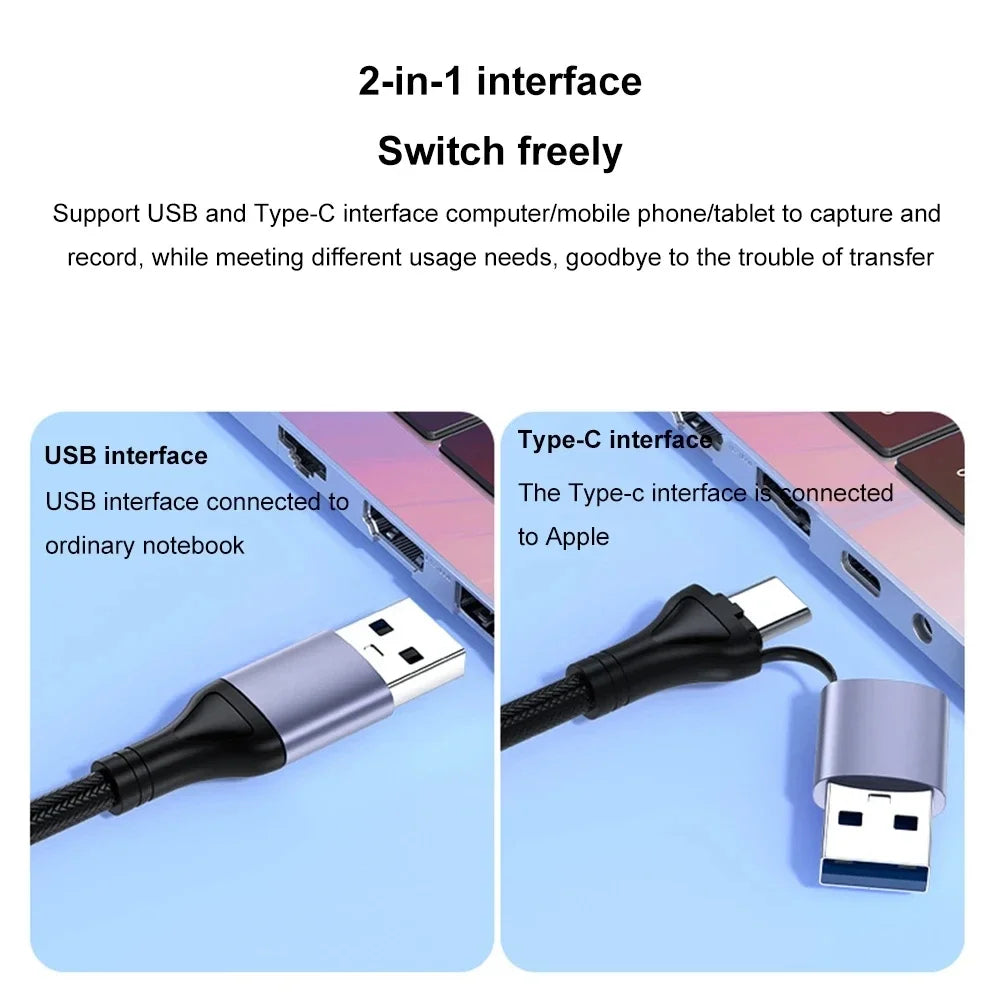

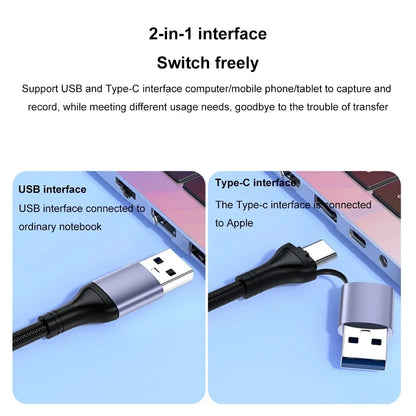

* USB2.0 Version Video Capture support Type-c 2.0 and USB 2.0 2-in-1 interface;

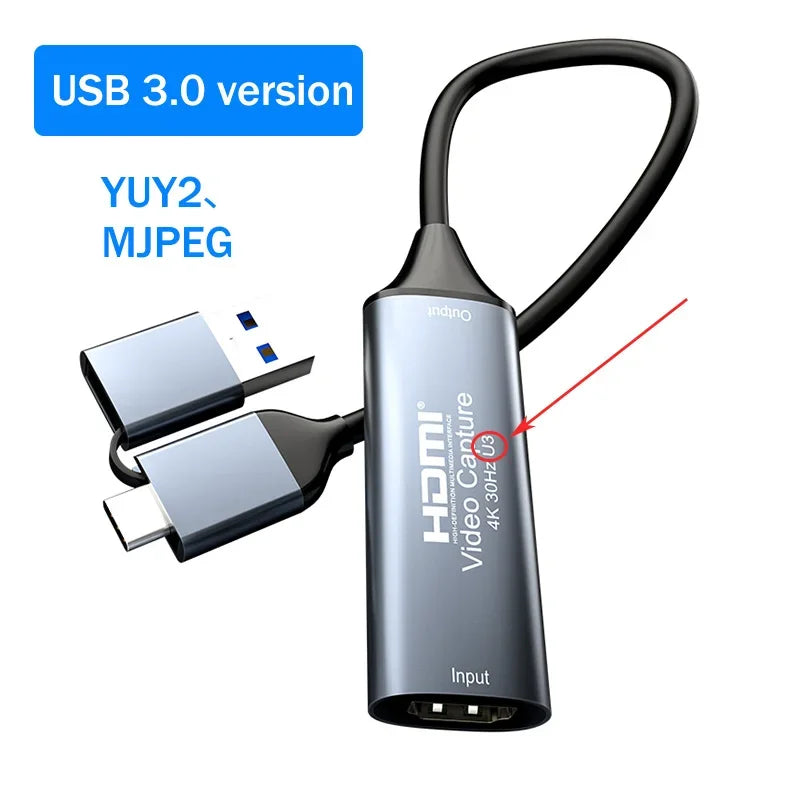

* USB3.0 Version Video Capture support Type-c 3.0 and USB 3.0 2-in-1 interface;
* No need external power supply, compact and portable.

Specifications:
HDMI resolution ..................................... Max input can be 4K
USB2.0 Version Support video format ..................... 8/10/12bit Deep color
USB2.0 VersionVideo output format ....................... MJPEG
USB3.0 VersionSupport video format .................. 24/30/36bit Deep color
USB3.0 VersionVideo output format .................... YUY2,MJPEG
Video output resolution ............................................................ Max output can be 1080P
Support audio format ............................................................................................. L-PCM
Input cable distance ................................................ ≤15m,AWG26 HDMI standard cable
Max working current ...................................................................................... 0.2A/5VDC
Operating Temperature range .............................................................. (-10 to +55℃)
Dimension (L x W x H) ......................................................................... 11x23x240 (mm)
Weight ............................................................................................................ 27g
