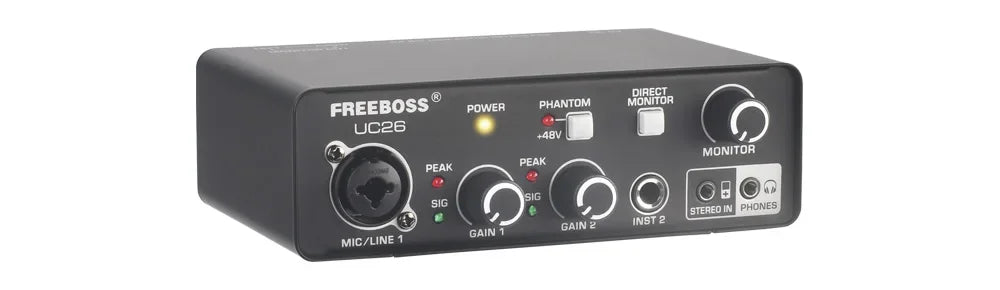

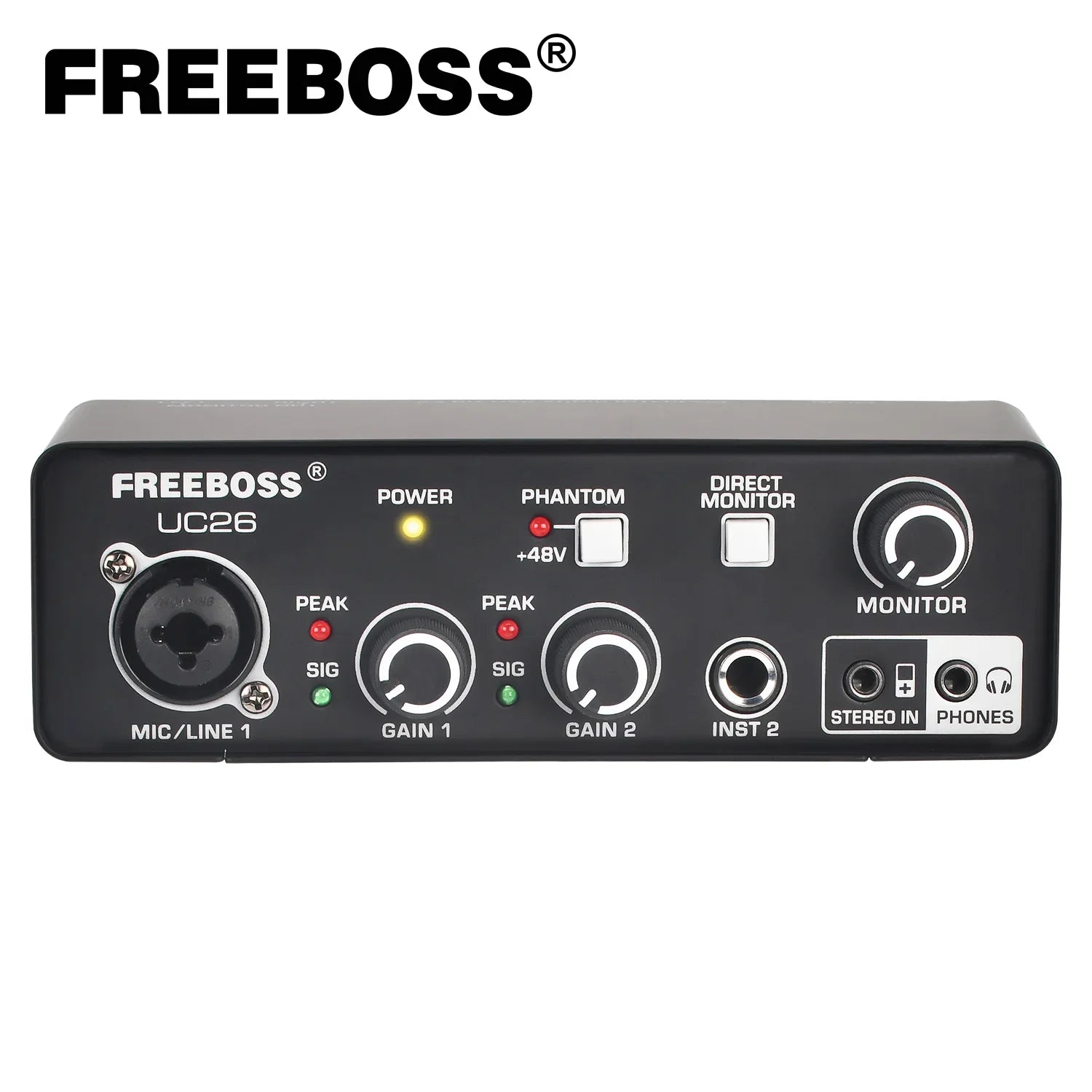

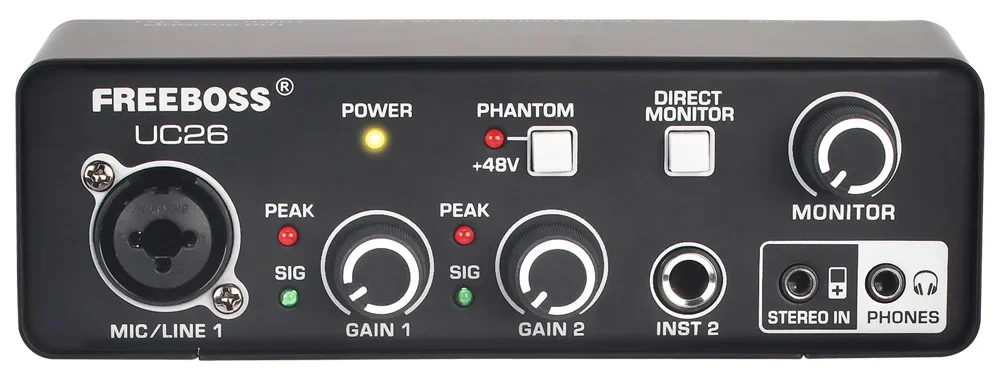

FREEBOSS UC26

  3 channels recording audio interface support ASIO4ALL 48V phantom power high impedance INST socket direct monitor driver-free sound card with 3.5mm stereo input .

Selling Point

  1. 3 input channel.

  2. Free drive.

  3. Direct monitor.

  4. Support ASIO4ALL.

  5. 48V phantom power.

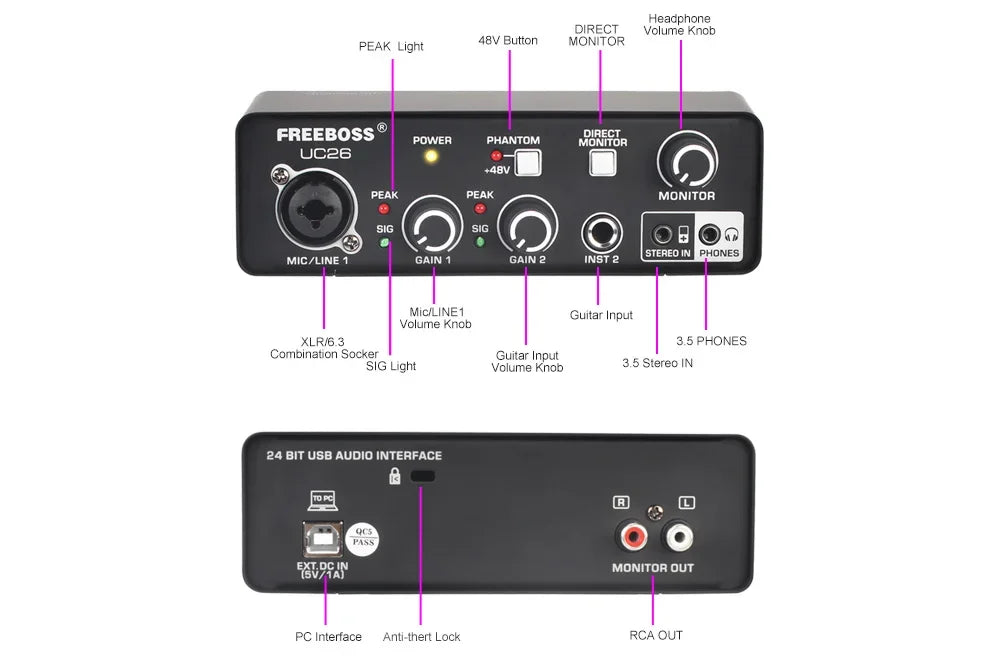

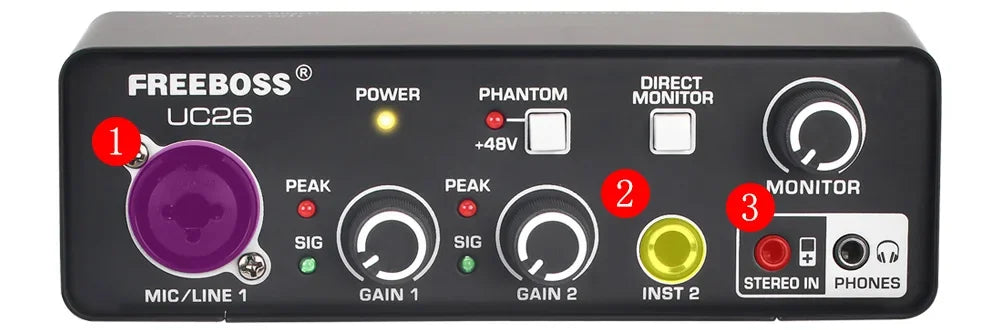

3 Input Channel

  It is 3 channels input soundcard.

    1. The channel 1 is a combination socket with XLR and 6.35 socket, it can connect to 48V condenser microphone or dynamic microphone.

    2. The channel 2 is a 6.35 high impedance instrument input, it can connect to guitar.

    3. The channel 3 is a 3.5 stereo input, it can connect to MP3 devices.

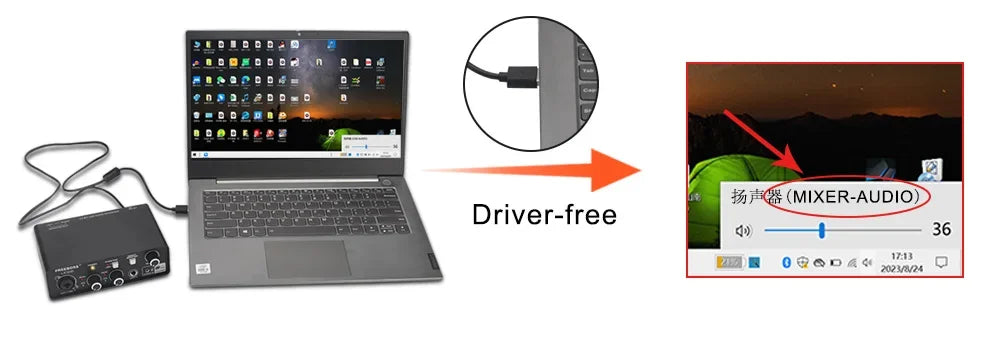

Free Driver

   No need driver.
Suit for Window or Mac OS.

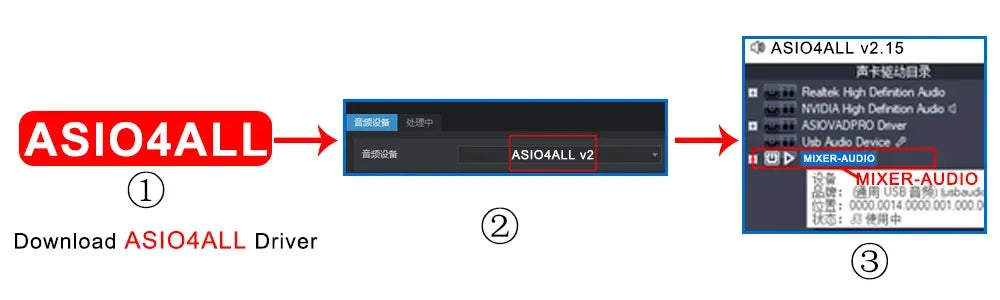

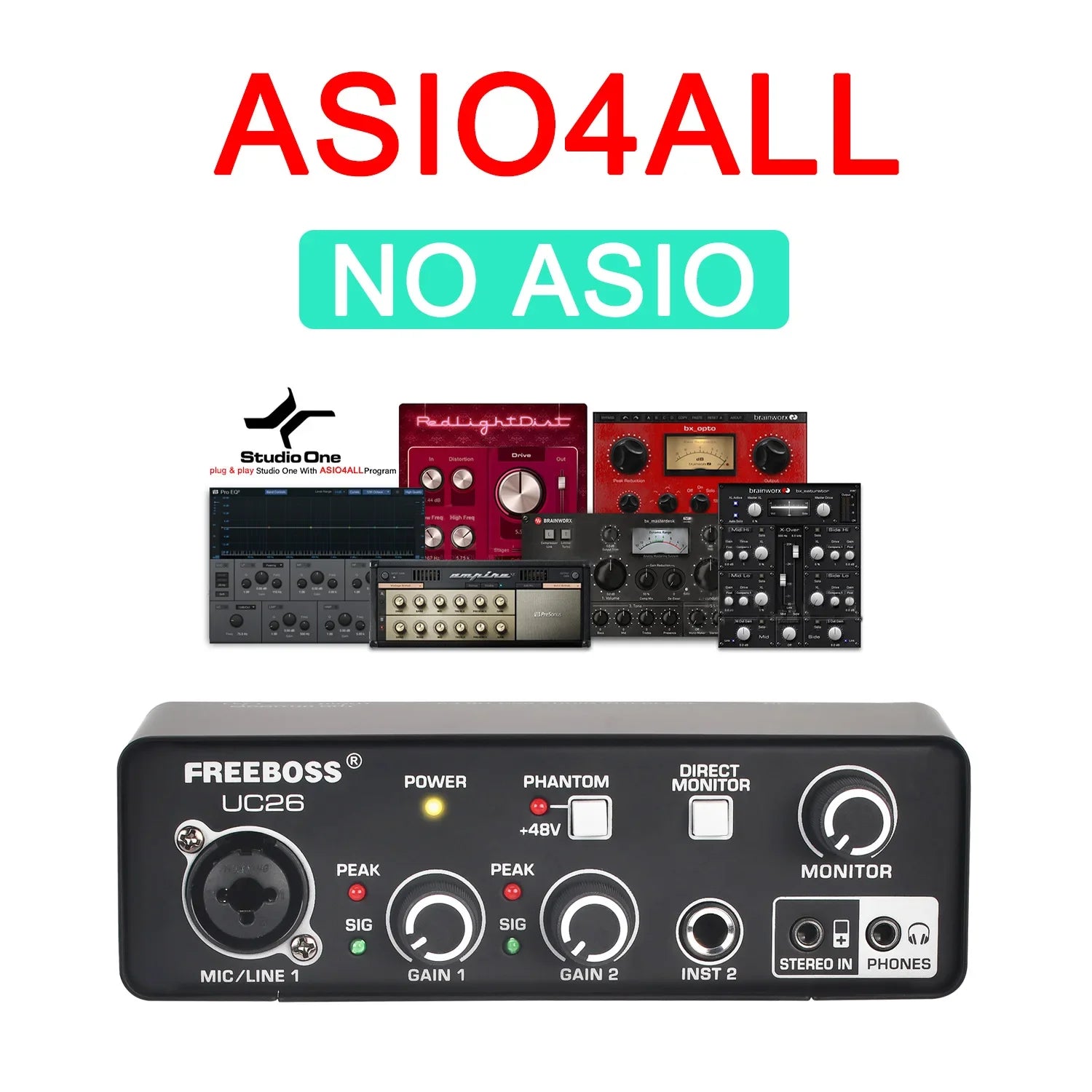

Support ASIO4ALL

1.  ASIO4ALL is only for window
2.  We do not supply the software, please download it by yourself.
3.  Do not support: ASIO

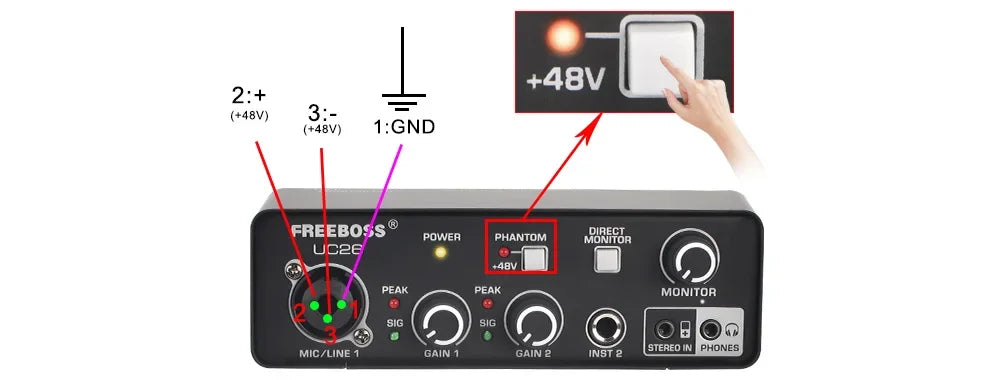

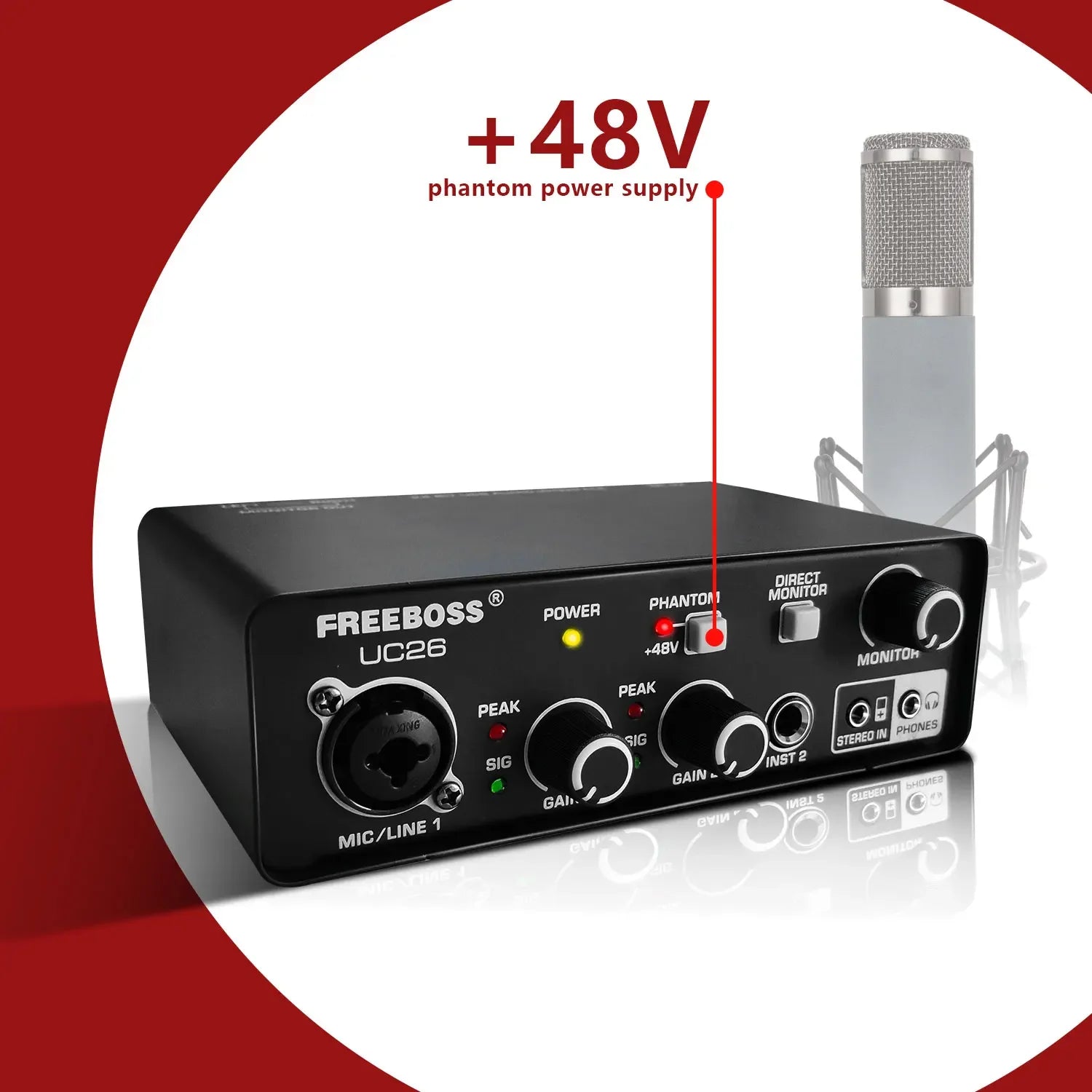

48V Phantom Power

48V phantom power is only for XLR jack, not for 6.35 jack.

Connecting a computer

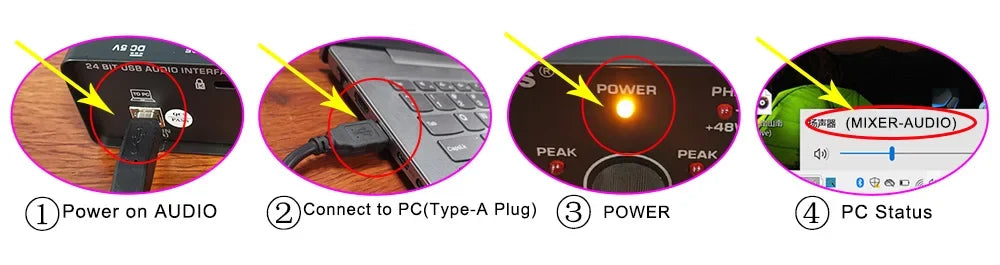

1.Computer settings.

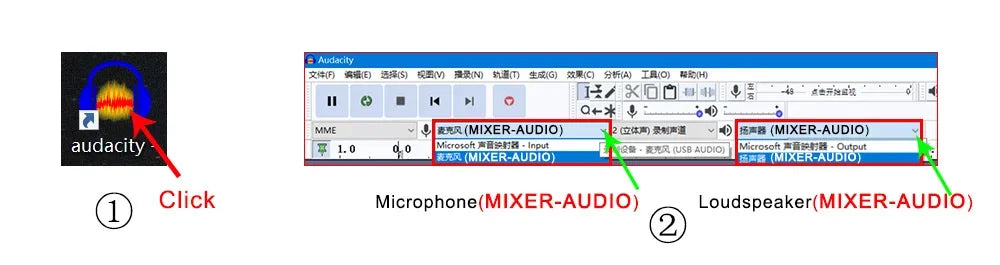

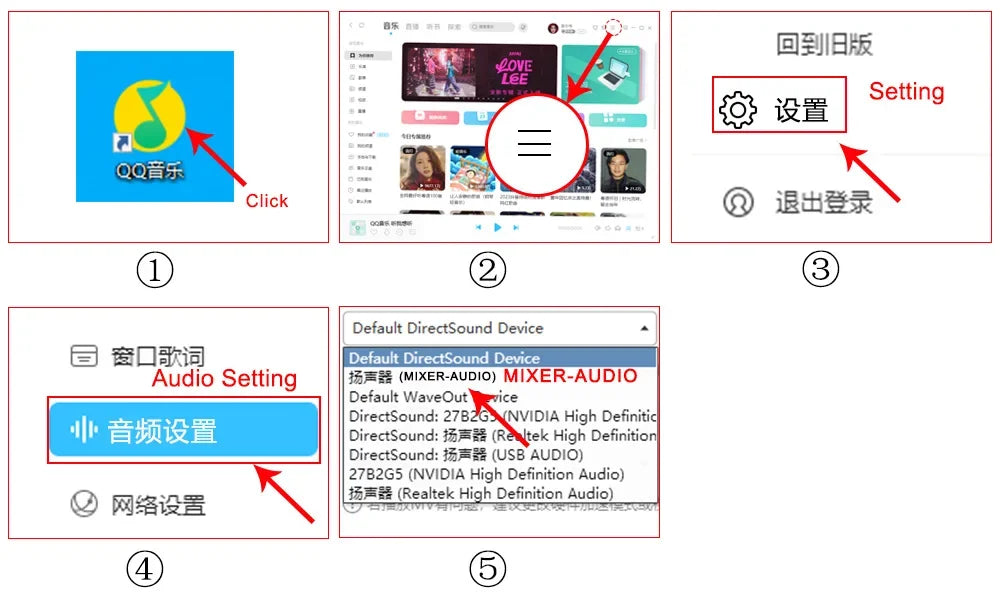

2.Computer software playback settings.

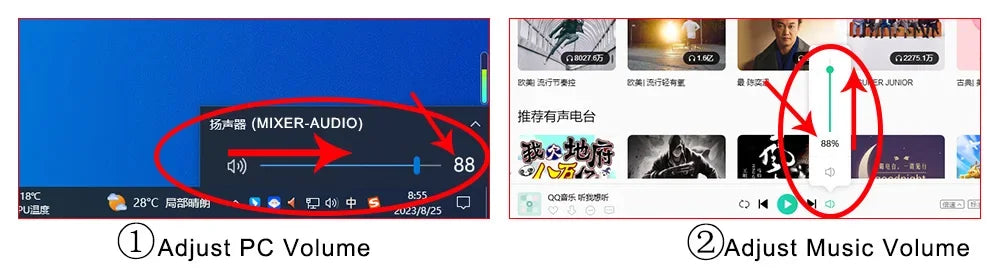

3.Computer playback volume adjustment.

4.Computer Recording.

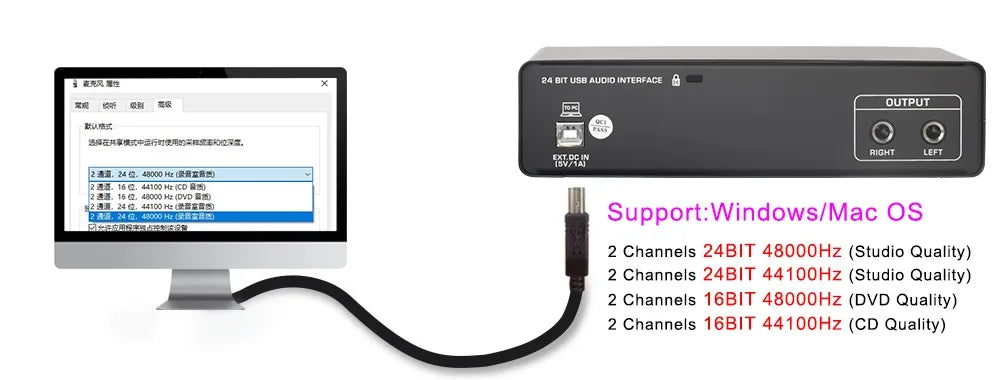

  Recording rate:

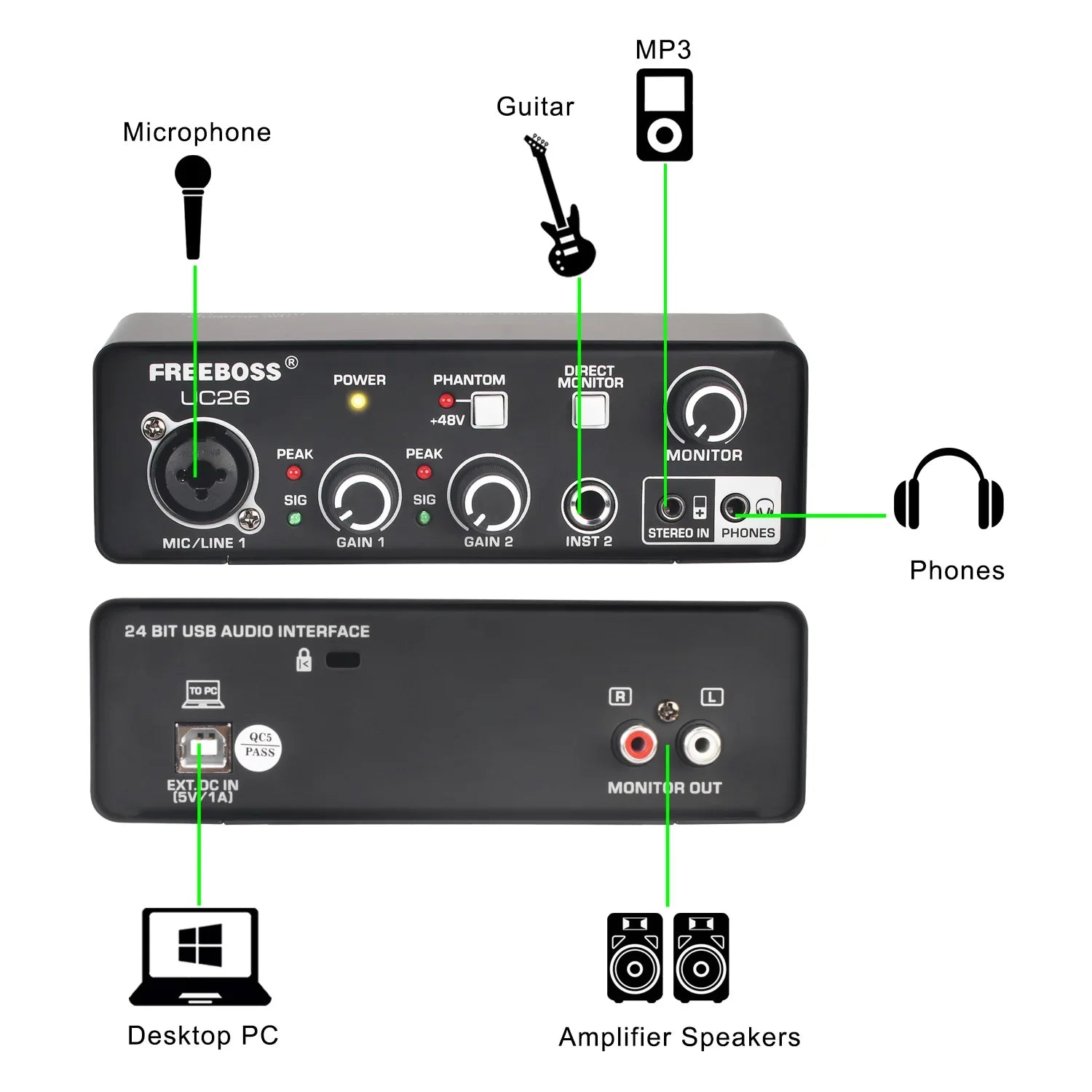

Connections with other devices

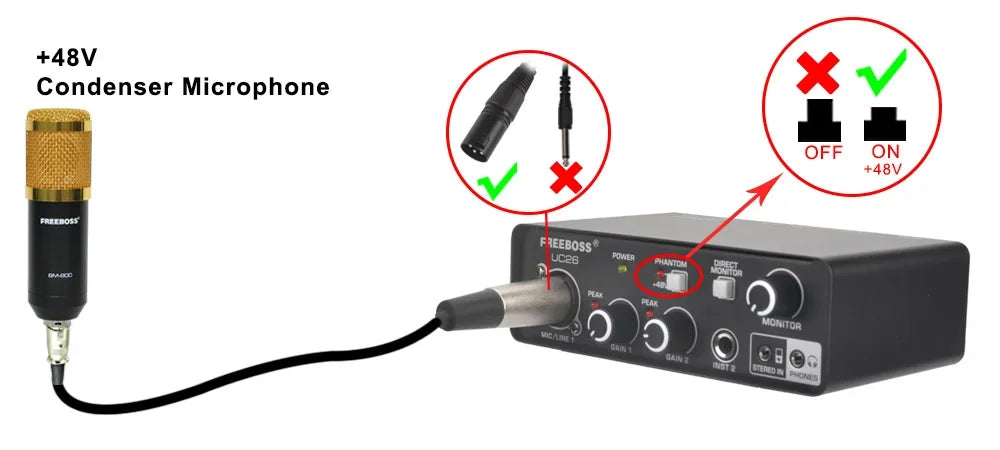

1. 48V condenser microphone

    If your microphone is a 48V condenser microphone, please use XLR plug connect to sound card and turn on 48V phantom power, otherwise 48V condenser microphone will not work on sound card.

2. Dynamic microphone

     If your microphone is a dynamic mic, we recommend using an XLR plug connect to sound card, because the sound will be small when you using the 6.35 plug connect to sound card.

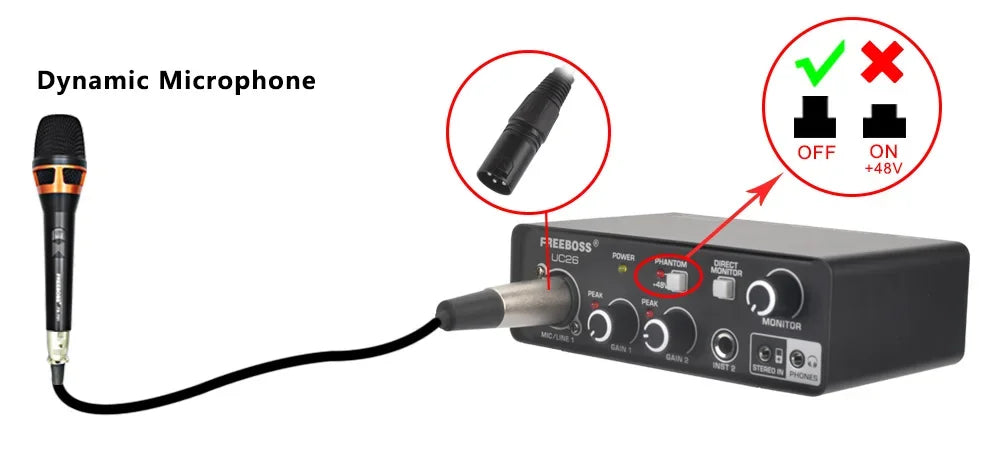

        (1) When using XLR plug, please turn off 48V phantom power, otherwise the dynamic mic may be burned.

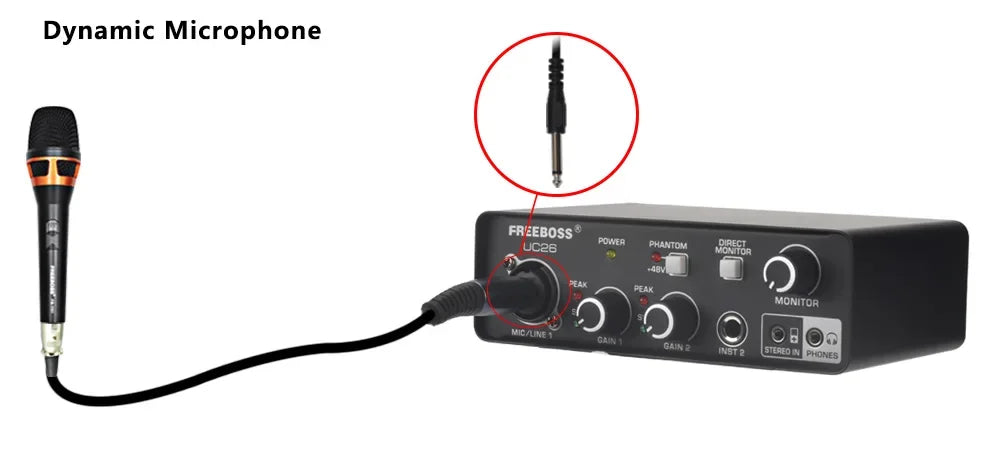

    (2) When using 6.35 plug, the 48V can be turned on or off, because 48V does not power supply to 6.35 socket.

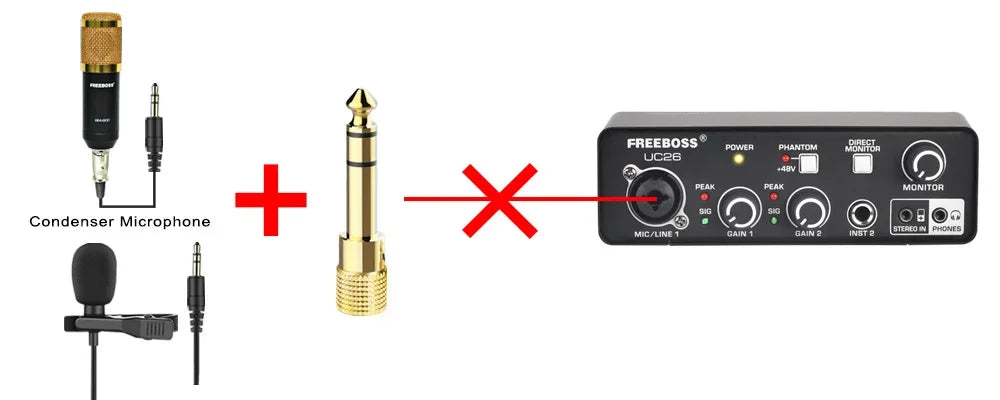

 3. Non-48V condenser microphone will not work on sound card.

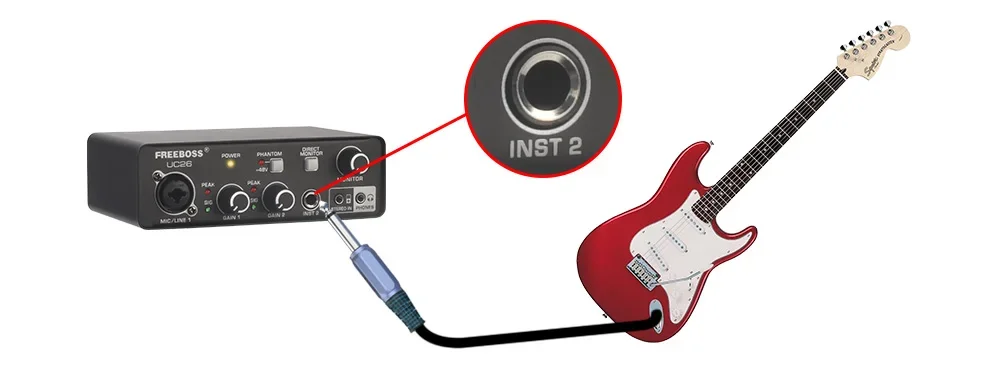

High Impedance INST Socket

Direct Monitor

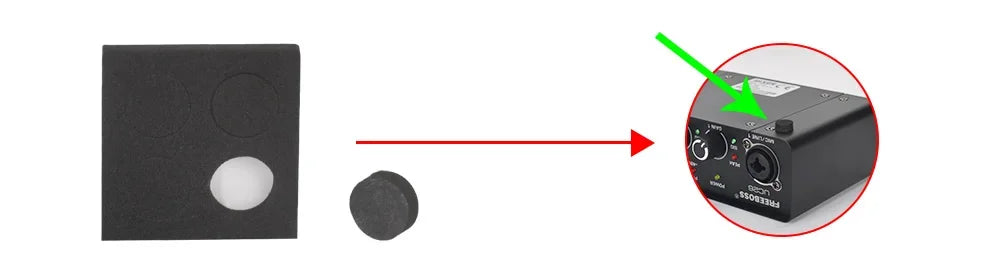

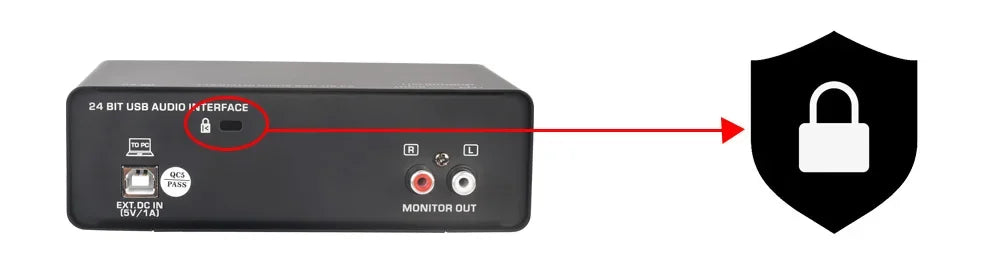

Safety Lock

Non-slip Mat

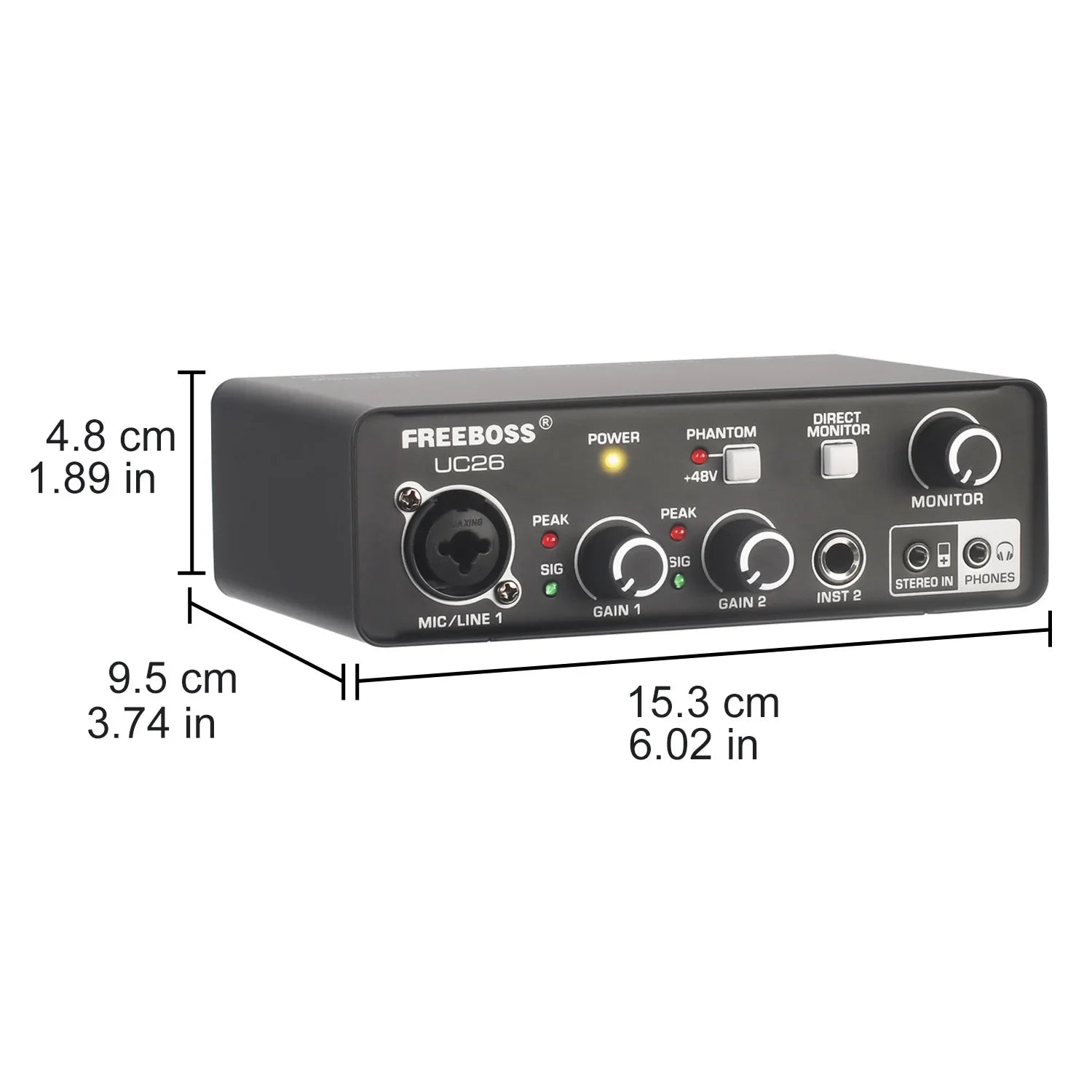

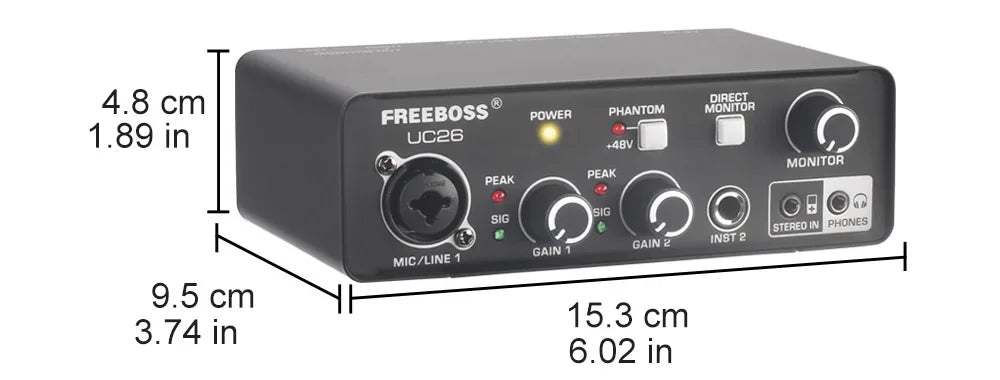

Product Size

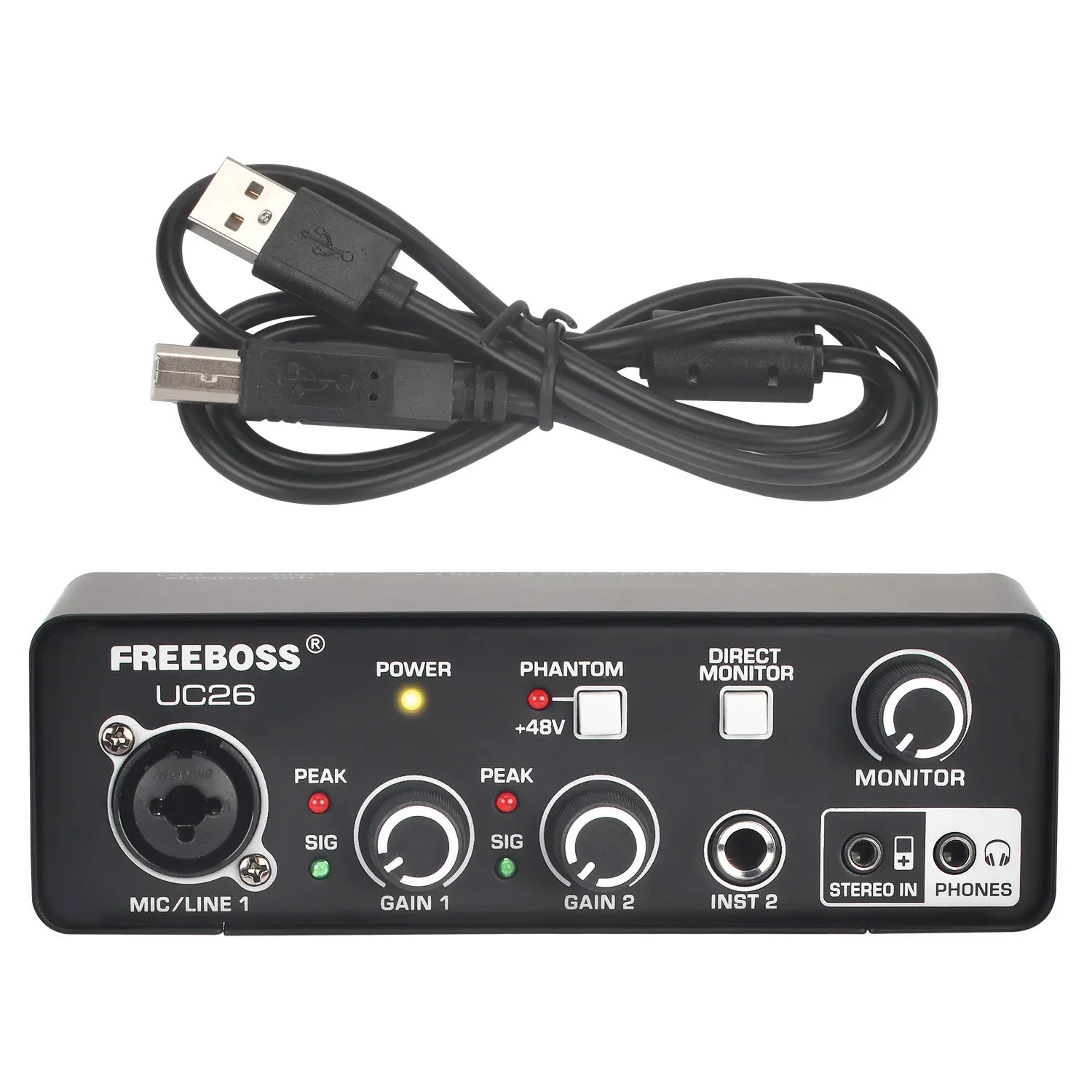

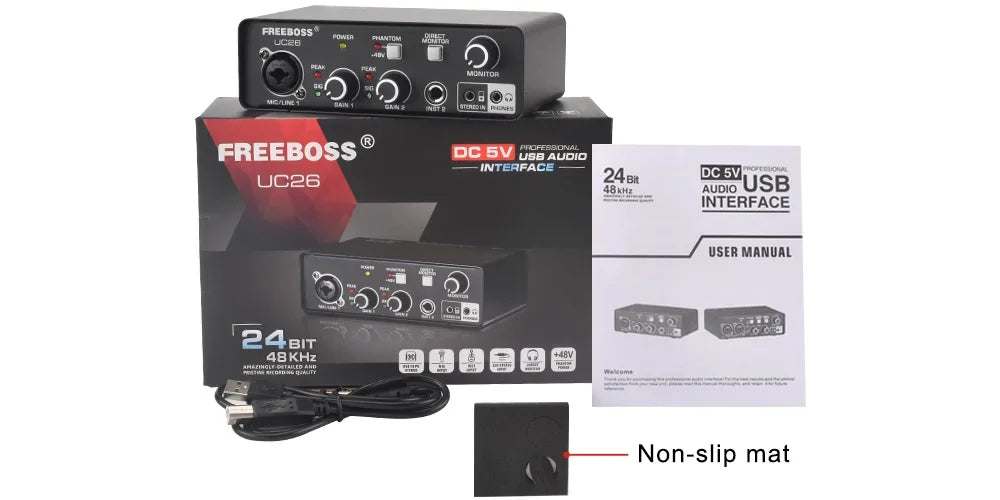

Packing List

Product Details
